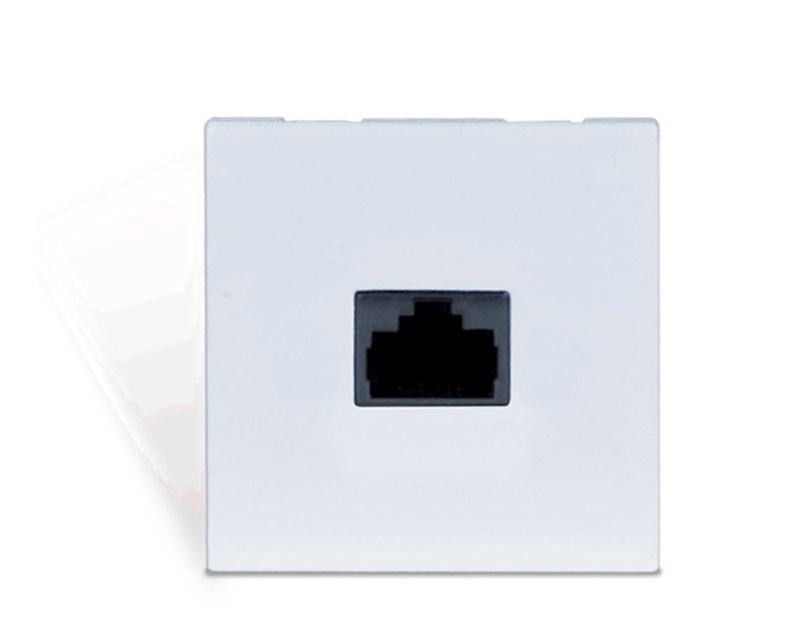

Audac CP43ARP/W RJ45 Bağlantı Noktası-Tekrarlayıcı-Bticino (Beyaz) (CP43ARP/W)

Audac CP43ARP/W RJ45 Bağlantı Noktası-Tekrarlayıcı-Bticino

Yüksek kalitesi ve en uygun fiyatıyla Audac CP43ARP/W, medumuzikmarket.com'da

The CP43ARP allows you to attach one APM paging console on the front, while the phoenix connector on the back lets you route the signal to a next paging console or junction box. It can offer 20V power to the APM console and is also equipped with 2 jumpers to terminate the audio -or databus. An advantage the ARP version has over the ARJ version is that it also offers a built-in repeater. This repeater extends the maximum distance from 300m to 600m. This device is also fully compatible with bTicino installation materials.

Özellikleri
Connectors    Front    RJ45 (Pin 1-8)
Rear    10-pin Euro Terminal Block (Pitch - 3.81 mm)
Power    2-pin Screw Terminal
Dimensions    43 x 43 x 30 mm (W x H x D)
Weight    0.060 kg
Built-in depth    40 mm (min.)
Construction    ABS
Finish    Soft-touch painting
Mounting    43 x 43 mm (bTicino)

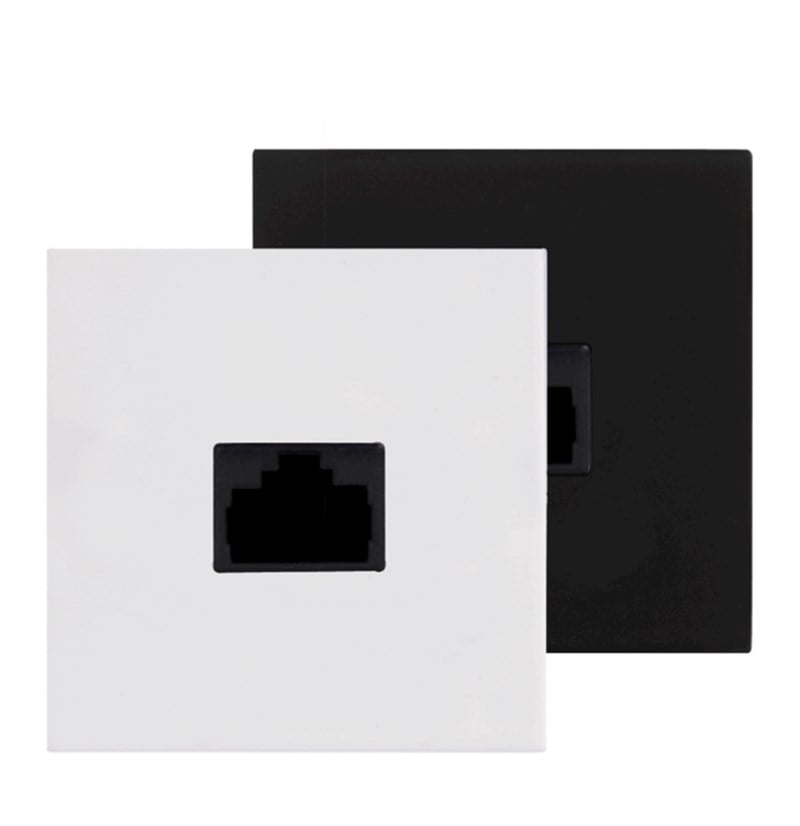

Colours    White (RAL9010) (CP43ARP/W)
Black (RAL9005) (CP43ARP/B
