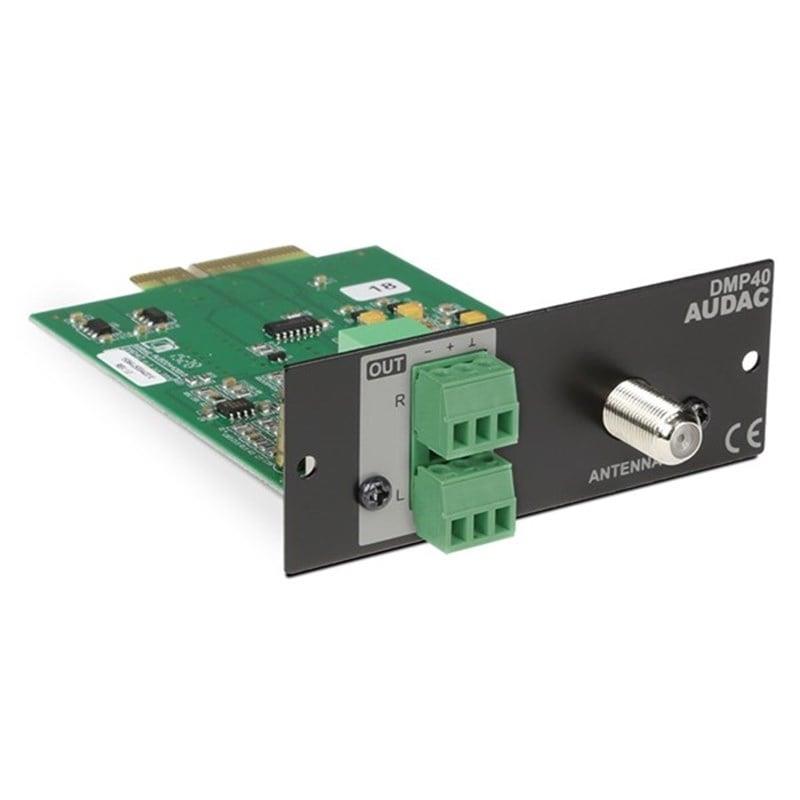

Audac DMP40 Dab/dab+/fm tuner module - XMP44 için (DMP40)

Audac DMP40 Dab/dab+/fm tuner module - XMP44 için

Connection SourceCon™ interface card slot

Inputs F-type antenna connection (75 Ω)

FM Tuning Range (-10 dB) 87.5 ~ 108 MHz

Sensitivity (1W/1m) -108 dBm

Signal / Noise 52 dB

THD+N (@ 1 kHz) 0.22%

Frequency Response (± 3 dB) 30 Hz - 12.5 kHz

Crosstalk (@ 1 kHz) 26 dB

DAB Sensitivity (1W/1m) -99 dBm

Signal / Noise 81 dB

THD+N (@ 1 kHz) 0.026%

Frequency Response (± 3 dB) 42 Hz - 20 kHz

Crosstalk (@ 1 kHz) 53 dB

Outputs Type Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm))

Level +8 dB ~ -32 dB

Power Consumption 1.5 W

DAB Tuning Range (-10 dB) Band-3 171 ~ 240 MHz

L-Band 1452 ~ 1492 MHz
