Audac KYRA12/B 12x2'' Desing Column Speaker (Siyah) (KYRA12/B)

Audac KYRA12/B 12x2'' Desing Column Speaker

Hoparlör kategorisinden yer alan Audac KYRA12/B, medumuzikmarket.com'da

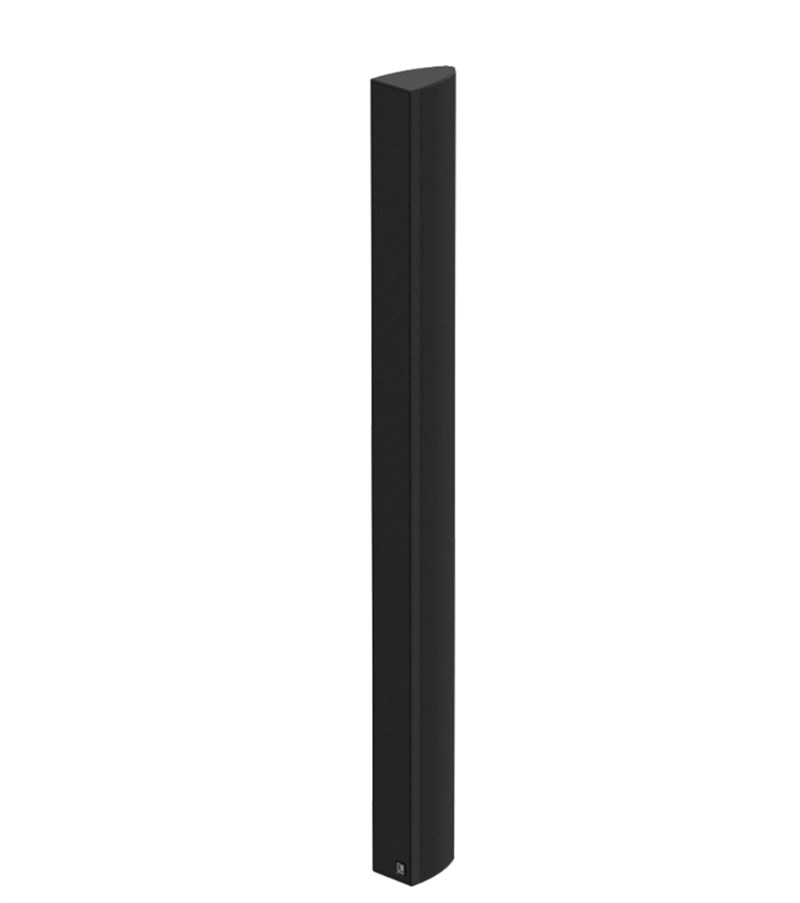

The KYRA12 design column speaker consists of 12 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 120 Watt and the beamwidth of 170° x 20° makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues.

A multi-tapping line transformer allows it to be connected to 70V/100V public address systems with different power taps for 40W, 20W and 10W and/or low impedance (10Ω) systems.

System Specifications

Speaker type    Broadband column
Max. Power    240 W
RMS Power    120 W
Impedance    12 Ω
Sensitivity (1W/1m)    92 dB
Sound Pressure (Max. W/1m)    113 dB
Drivers    12 x 2”
Ingress Protection rating    IP3x
Frequency    Range (-10 dB)    120 Hz - 20 kHz
Line Transformer Tappings    1    40 W - 125 Ω (70V)
2    250 Ω - 100 V / 40 W - 70 V / 20 W
3    500 Ω - 100 V / 20 W - 70 V / 10 W
4    1000 Ω - 100 V / 10 W - 70 V / 5 W
Temperature    Operating    -20 - +50 °C
Incline angle    Left    42°
Right    42°
Bottom    13°

Product Features

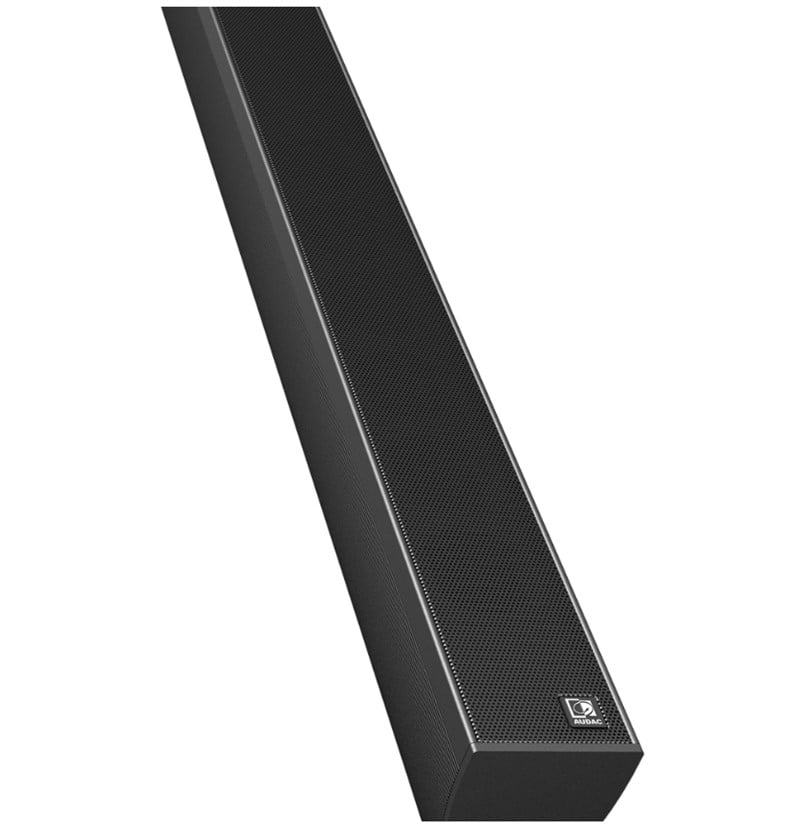

Front finish    Steel grill
Construction    Aluminium with plastic side covers
Dimensions    70 x 1006 x 101 mm (W x H x D)

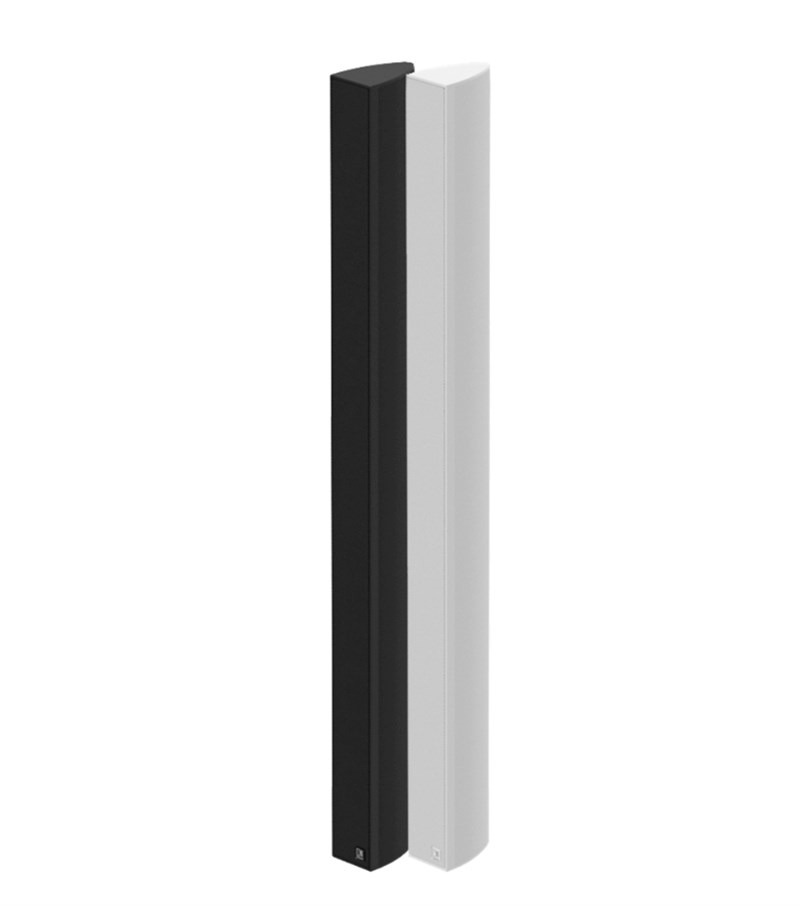

Colours    Black (KYRA12/B - RAL9005)
White (KYRA12/W - RAL9003)
Accessories    Included    2-way Revolving mounting bracket
1 x 3-pin Euro Terminal Block Input connectors
