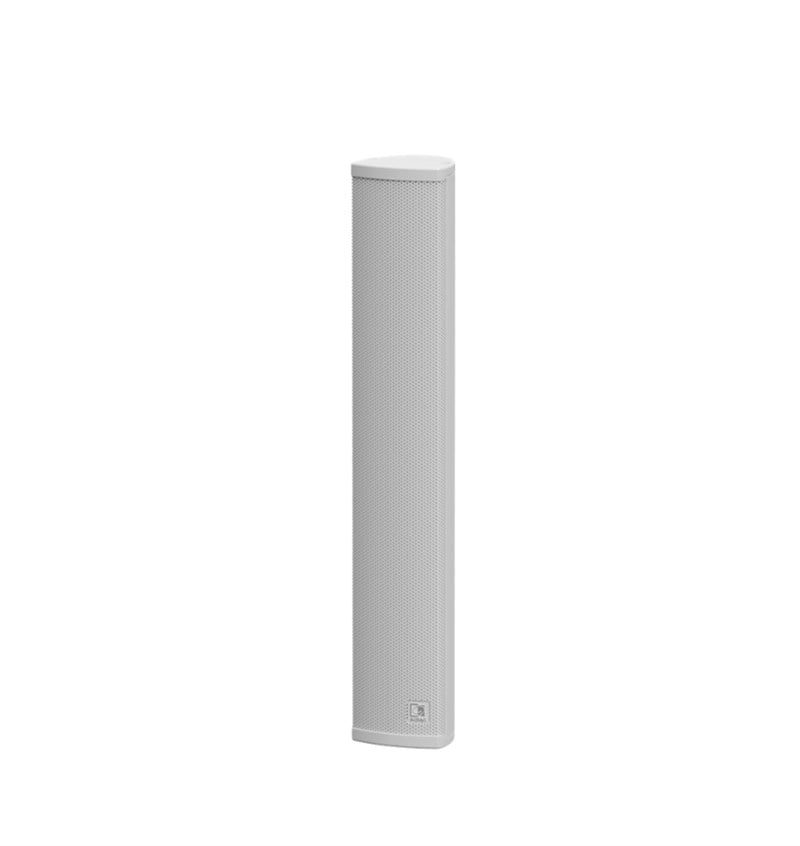

Audac LINO4/W 4 x 2'' 40 W Kolon Hoparlör (Beyaz) (LINO4/W)

Audac LINO4/W 4 x 2'' 40 W Kolon Hoparlör

Yüksek ses kalitesi ve en uygun fiyatıyla LINO4/W medumuzikmarket.com'da

The LINO series are column speaker series designed for a wide variation of general-purpose applications in acoustic difficult environments, ranging from speech and announcement applications to background music systems. Typical applications are houses of worship, auditoria, presentation rooms, public transportation hubs, … and many more. They are solidly constructed using solid aluminum materials and finished through a rigid finely perforated front grill. Mounting is done through an L-shaped bracket on top and bottom, offering optimal flexibility for fixation and directional placement. Connections are made through terminal block connections.

The LINO4 column speaker consists of 4 x 2” low/mid-frequency drives with a 1” central positioned tweeter for the high frequencies. It reaches a power handling of 20 Watt, while a multi-tapping line transformer allows it to be connected in 70V/100V public address systems with power taps for 20W, 10W and 5W.

System Specifications

Speaker type    Column speaker
Max. Power    40 W
RMS Power    20 W
Impedance    8 Ω
Sensitivity (1W/1m)    87.2 dB
Sound Pressure (Max. W/1m)    101 dB
Drivers    4 x 2”
Connectors    6-pin Euro Terminal Block
Frequency    Range (-10 dB)    120 Hz - 20 kHz
Response (± 3 dB)    170 Hz - 15 kHz
Line Transformer Tappings    1    250 Ω - 100 V / Not used - 70 V / 20 W
2    500 Ω - 100 V / 20 W - 70 V / 10 W
3    1000 Ω - 100 V / 10 W - 70 V / 5 W
4    2000 Ω - 100 V / 5 W - 70 V / 2.5 W
Temperature    Operating    -20 - 50 °C

Product Features

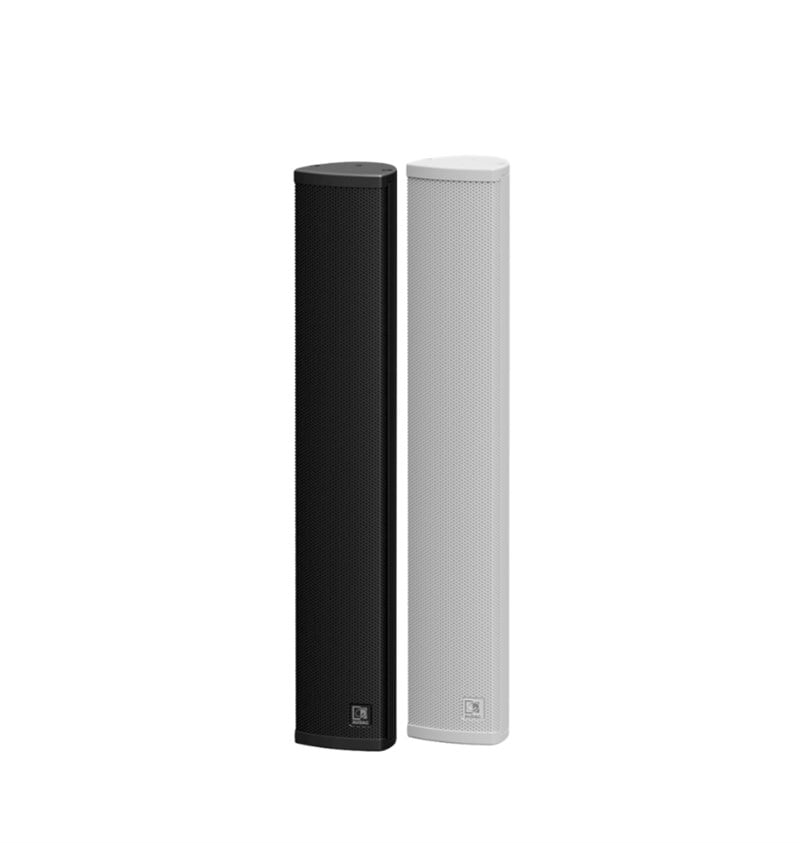

Colours    Black & White
Construction    Aluminum
Front finish    Steel grill
Dimensions    72 x 425 x 101 mm (W x H x D)
