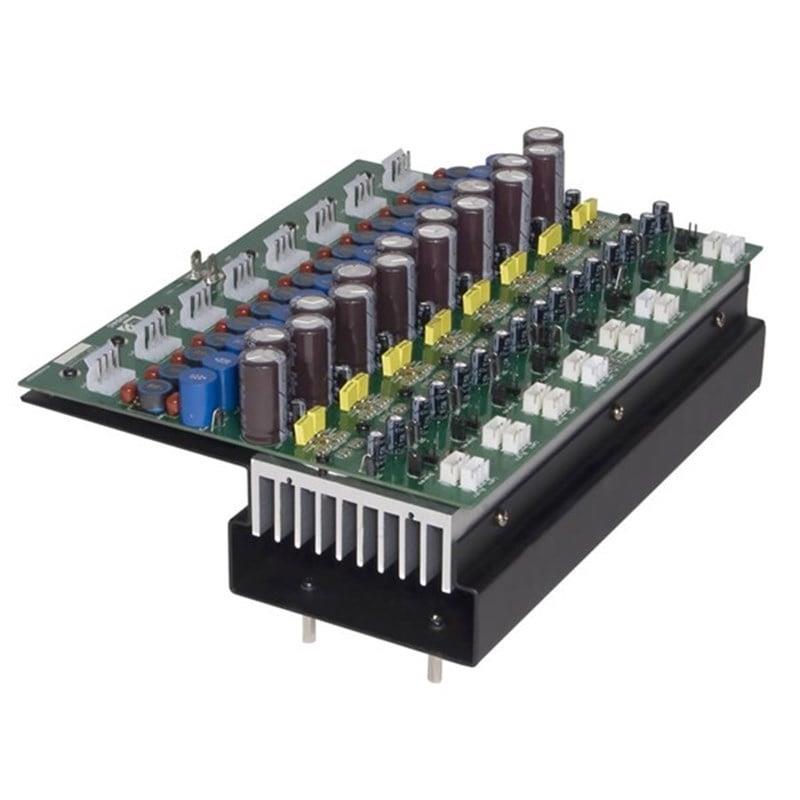

Audac POW2 Power Amplifikator Modülü - R2 ve M2 Dijital Matrix Sistem için (POW2)

Audac POW2 Power Amplifikator Modülü  - R2 ve M2 Dijital Matrix Sistem için

Signal / Noise > 100 dB

THD+N (@ 1 kHz) < 0.1% (1/2 Rated Power)

Technology Class-D

Cooling Temperature controlled FAN

Protection DC Short circuit

Over heating

Over load

Operating temperature 0° ~ 40° @ 95% Humidity

RMS Power @ 4 Ω Stereo 16 x 60 W

@ 8 Ω Stereo 16 x 30 W

@ 8 Ω Bridge 8 x 120 W

Load impedance Stereo 4 Ω

Bridge 8 Ω

Inputs Connector Internal linked

Outputs Connector 4-pin Euro Terminal Block (5.08 mm / On Matrix Chassis)

Frequency Response (± 3 dB) 20 Hz - 20 kHz

Power Supply Switching mode

Weight 3.900 kg

Mounting Integrated in R2 or M2 housing
