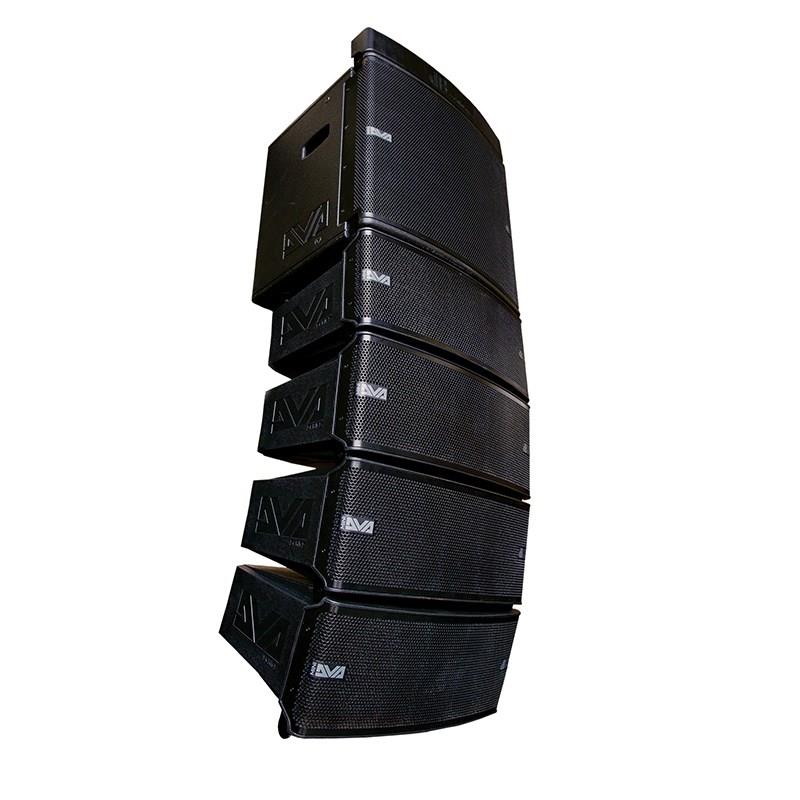

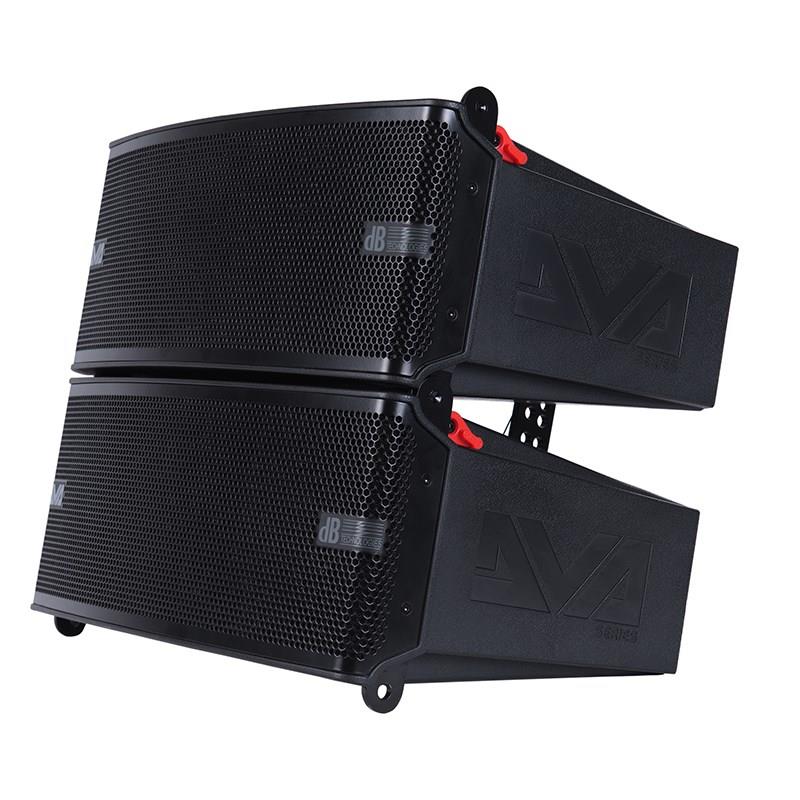

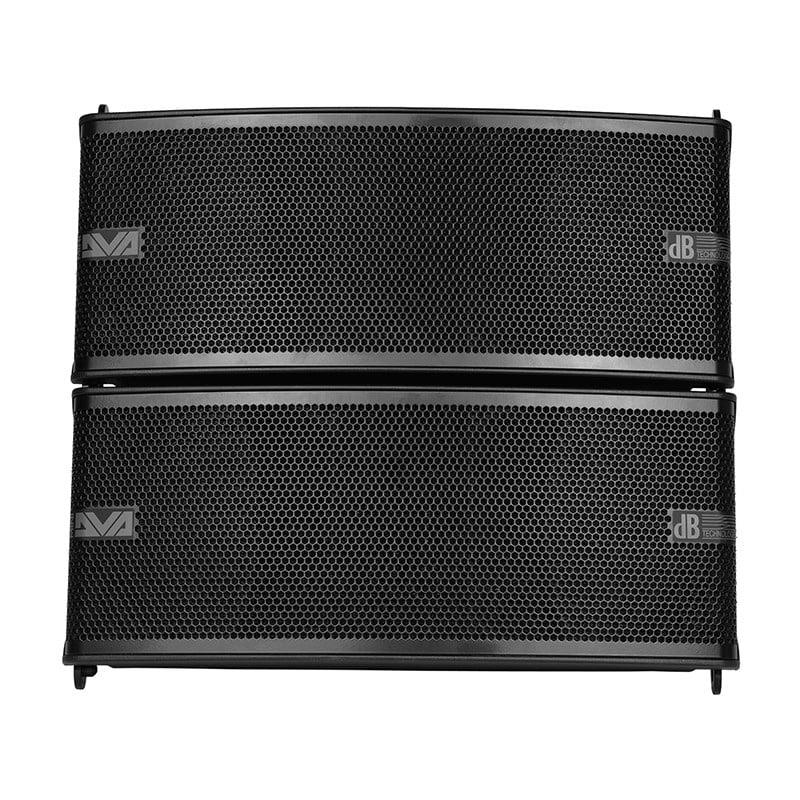

dB Technologies DVA-M2P 2-Yollu Pasif Line Array Sistem
Acoustical data
Nominal Power Rating150W / RMS
Peak Power Rating300W
Impedance16 Ohms
Frequency Response [-6dB]78 - 19.000 Hz
Frequency Response [-10dB]68 - 20.000 Hz
Max SPL126 dB per unit
HF2x1"
Type HFNeodymium
Voice Coil HF1"
LF2x6.5"
Type LFNeodymium
Voice Coil LF1.5"
Directivity90x15° Single Unit
Input

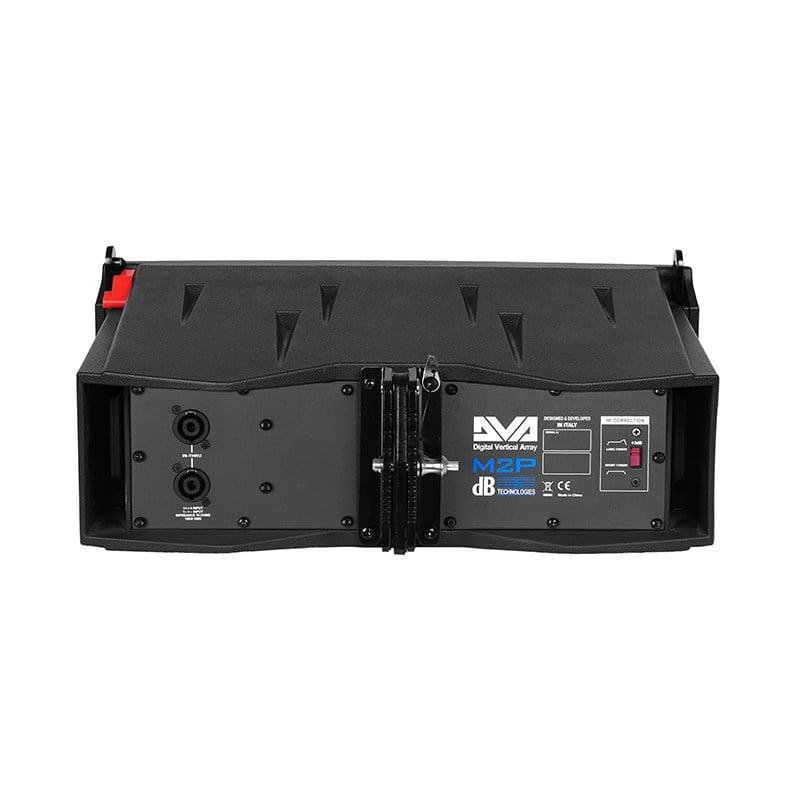

Signal Input1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
HousingPolypropylen PP
Handles2x back side

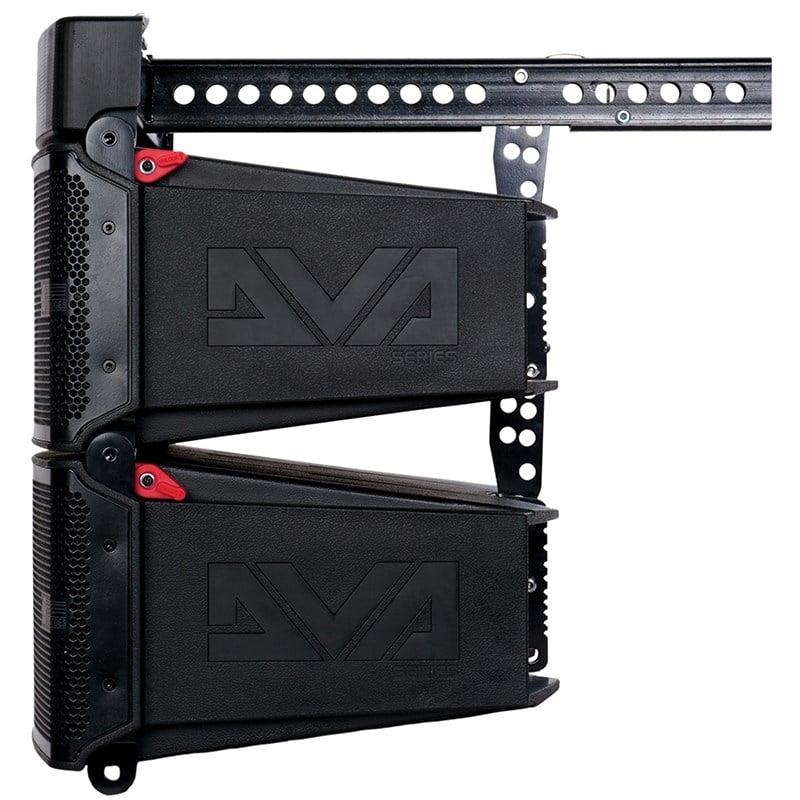

FittingsIntegrated hardware with fast lock mechanics
Splay Angles0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
Width460 mm (18.1 in)
Height190 mm (7.5 in)
Depth345 mm (13.6 in)
Weight7.1 kg (15.7 lbs)
