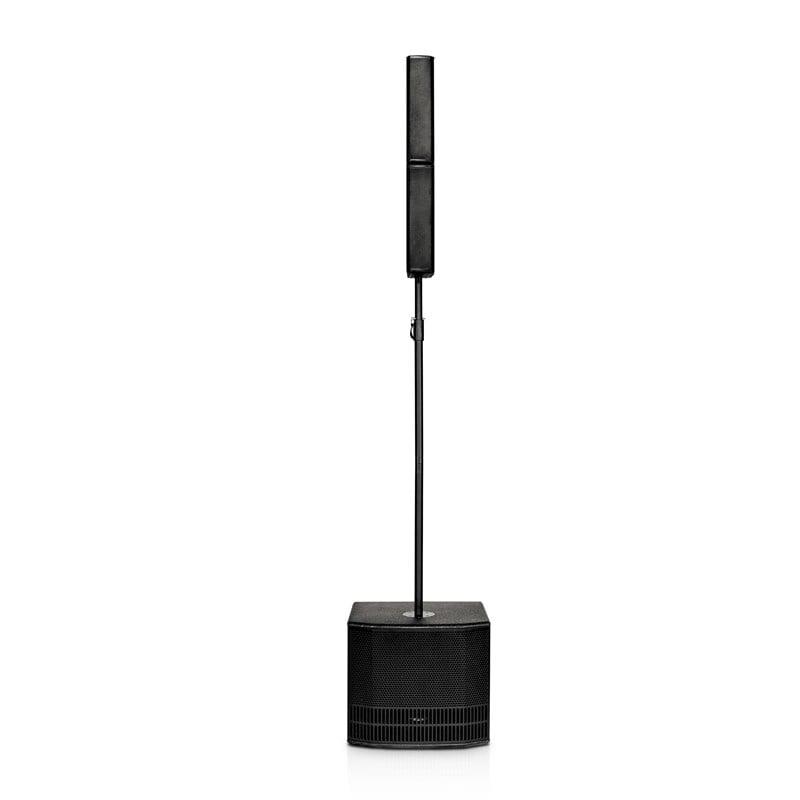

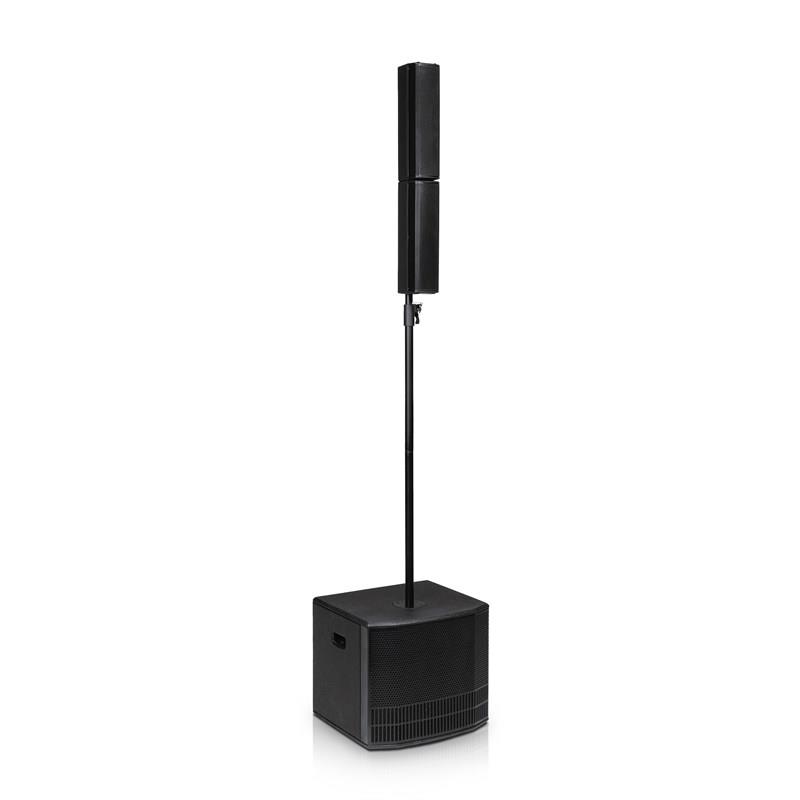

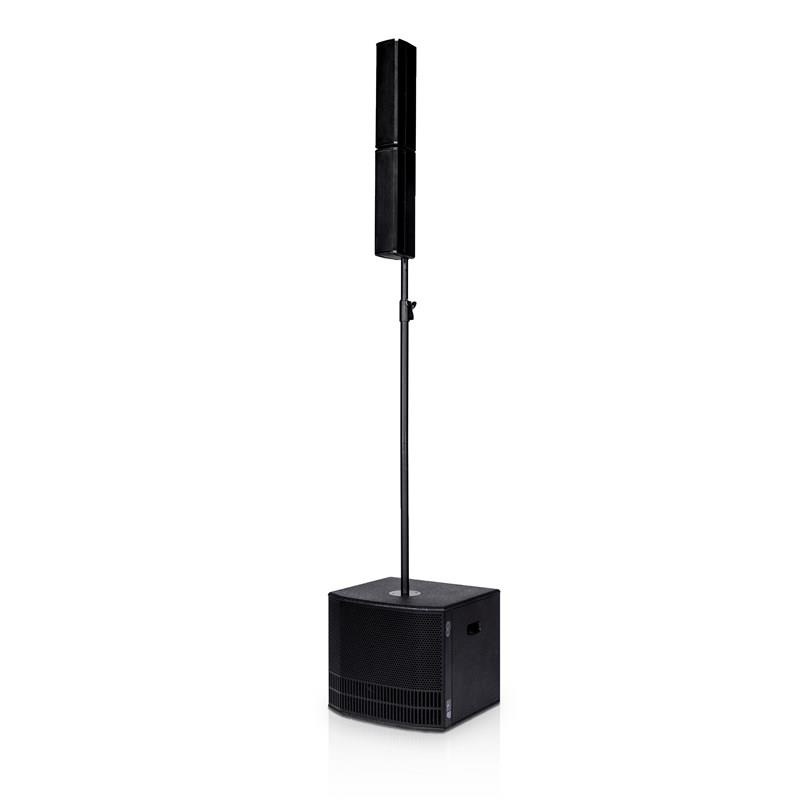

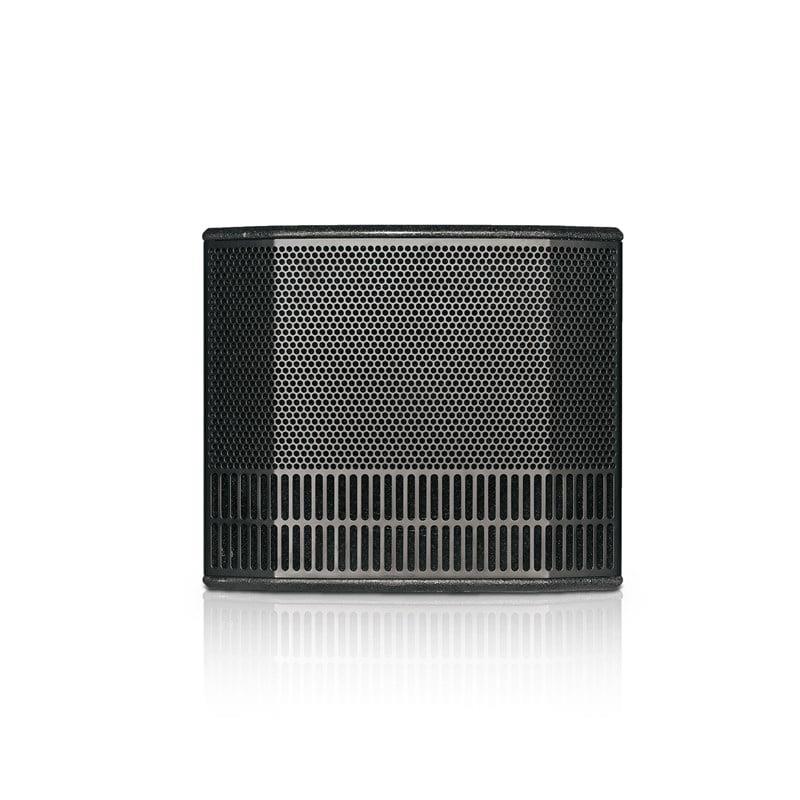

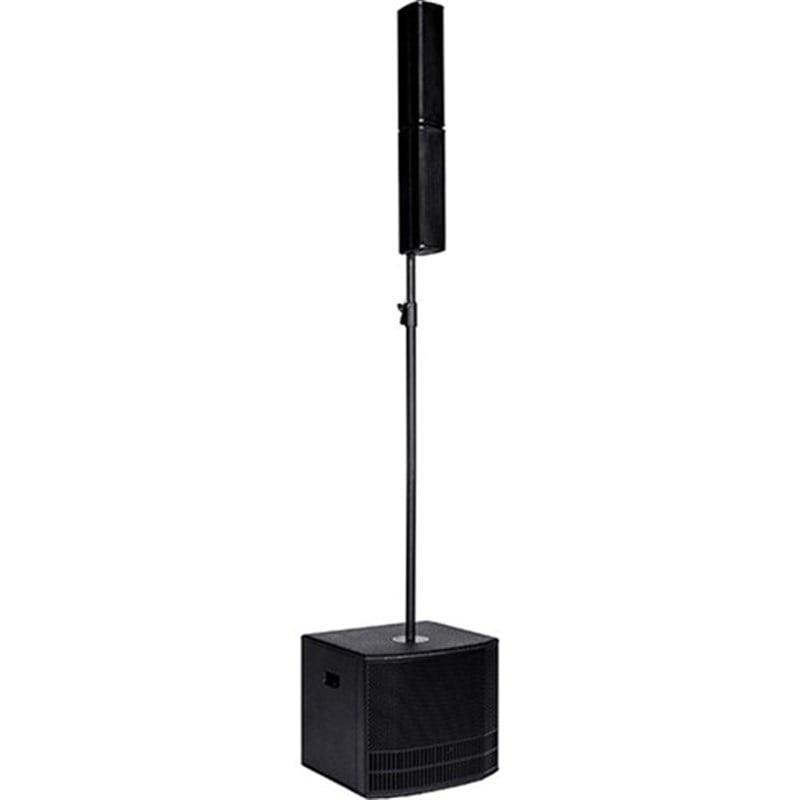

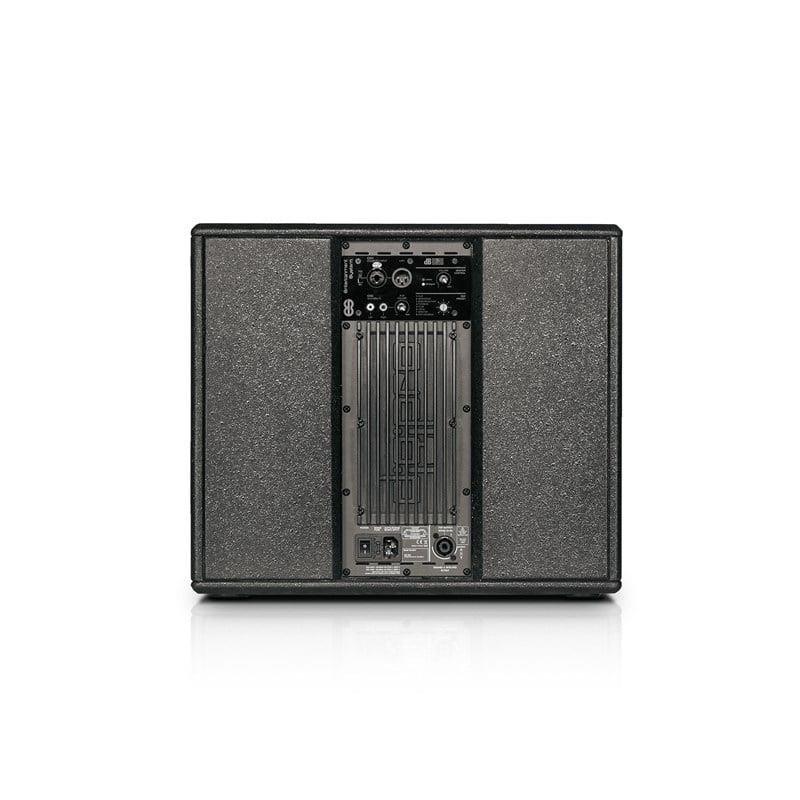

dB Technologies ES-802 1200W Portatif Ses Sistemi
Acoustical data
Frequency Response [-10dB]37-15.000 Hz
Max SPL124 dB
MF - HF8x 3"
Type MF - HFNeodymium
LF12"
Directivity95x65°
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass-D
Power Amp Peak1200 W
Processor
ControllerDSP 24 Bit/48 kHz
System PresetsFactory presets
LimiterDual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF 206 Hz
Input
Mic/Instrument Channel1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
Link Output1x XLR balanced output
Mechanics
Housing (Subwoofer)15mm Black Painted Plywood
Housing (Tops)Polypropylene PP
Handles2x lateral side (Subwoofer)
Width (Top)95 mm (3.74 in)
Height (Top)360 mm (13.98 in)
Depth (Top)137 mm (5.39 in)
Width (Subwoofer)465 mm (18.3 in)
Height (Subwoofer)400 mm (15.7 in)
Depth (Subwoofer)430 mm (16.9 in)
Weight (Top)1.9Kg – 4.19lbs
Weight (Subwoofer)16.4Kg – 36.16lbs
