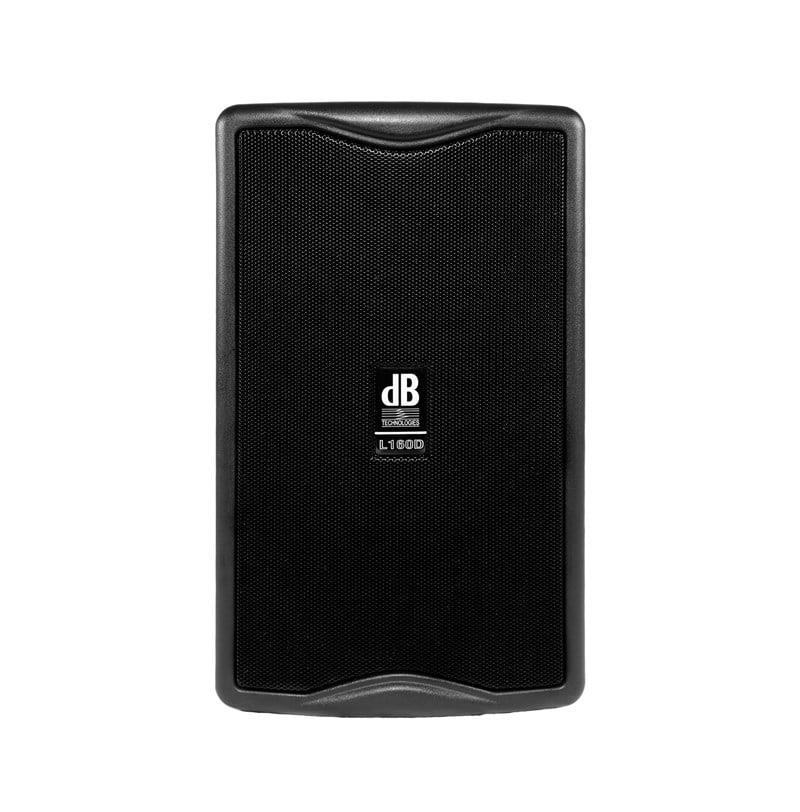

dB Technologies L 160D 2x5 inc 160 Watt Aktif Kabin
Acoustical data
Frequency Response [-10dB]70 - 20.000 Hz
Max SPL116 dB
HF1 "
Type HFDome Tweeter, coaxial
Directivity85 x 75 °
LF2x 5 “

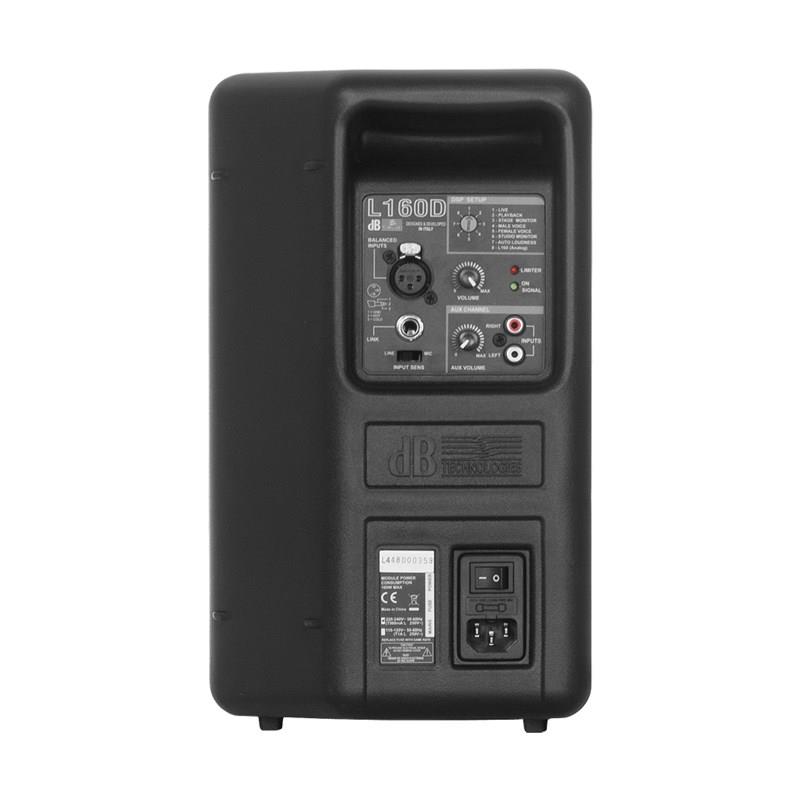

Amplifier
Amp Technologydigipro®
Amp ClassClass D
Power PRG160 W
CoolingConvection
Processor
ControllerDSP 24bit/48kHz
System Presets8
LimiterDual Active Peak, RMS, Thermal
Input
Signal Input1x XLR Line In/Mic
1x 6.3mm phone jack
1x RCA cinch AUX with volume ctrl
Microphone InputYES
Signal Output1x 6.3mm phone jack
Power SocketVDE
Voltage Range110-120 - 220-240 V
Mechanics
HousingPolyporpylen PP
Angles UpMonitor use 60°
Rigging Points2x M5 on side
2x M5 on bottom for accessories
AccessoryWB03, SN120
Width200 mm (7.87 in)
Height335 mm (13.19 in)
Depth220 mm (8.66 in)
Weight5.2 kg (11.46 lbs)
