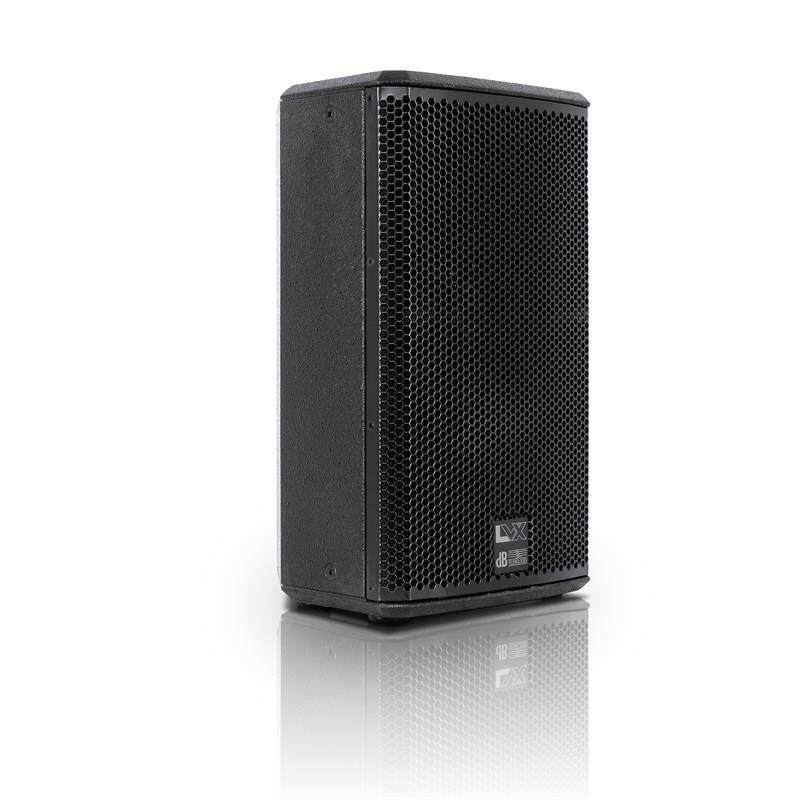

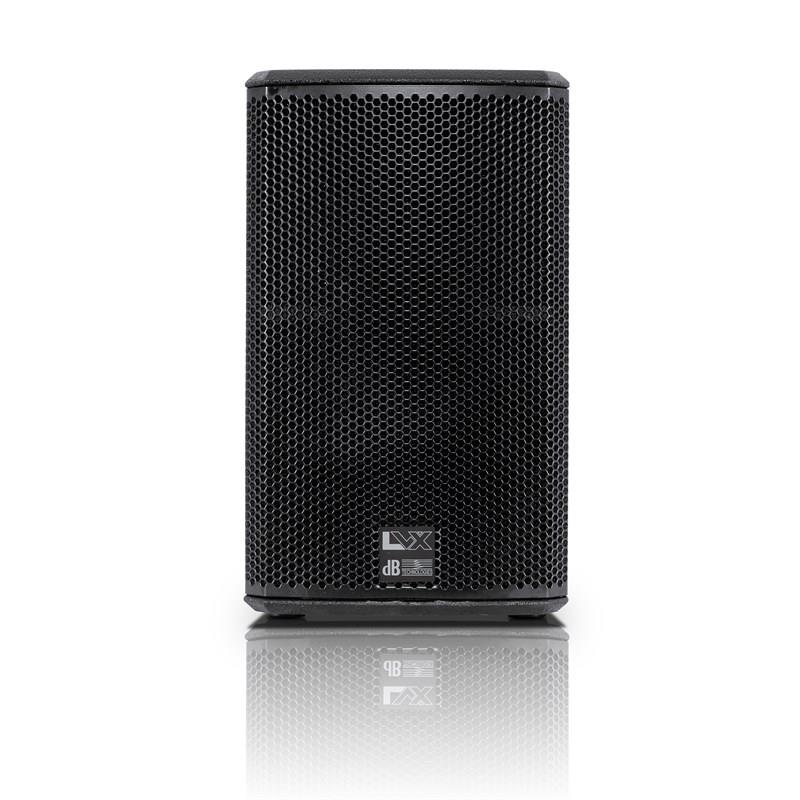

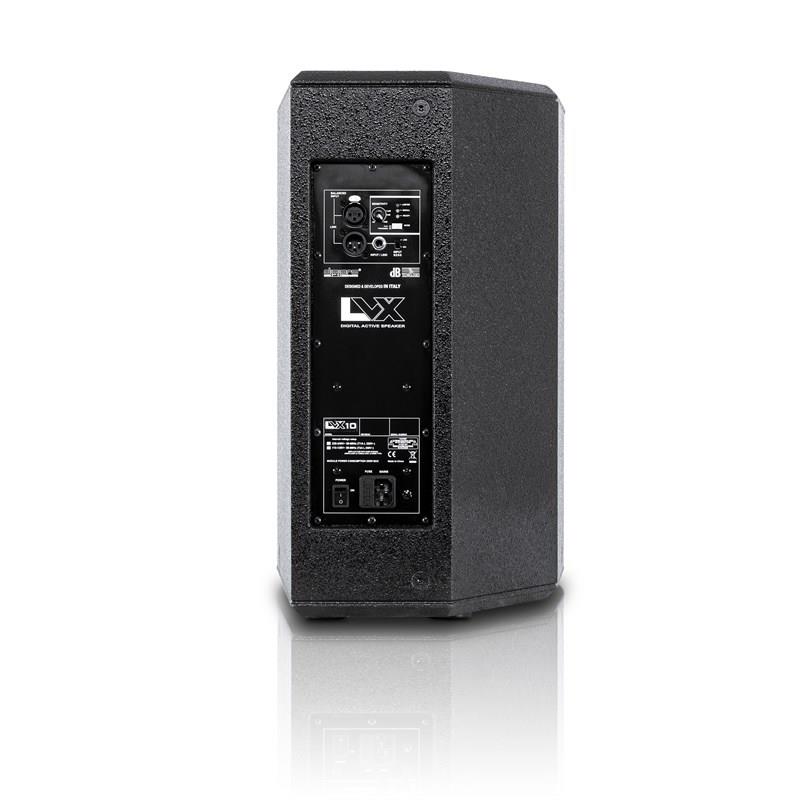

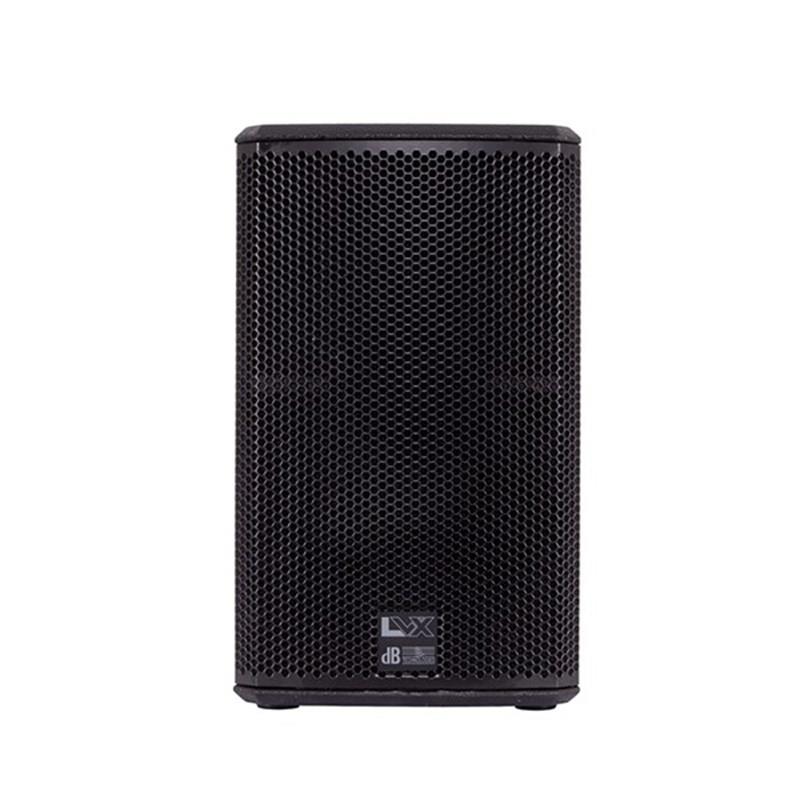

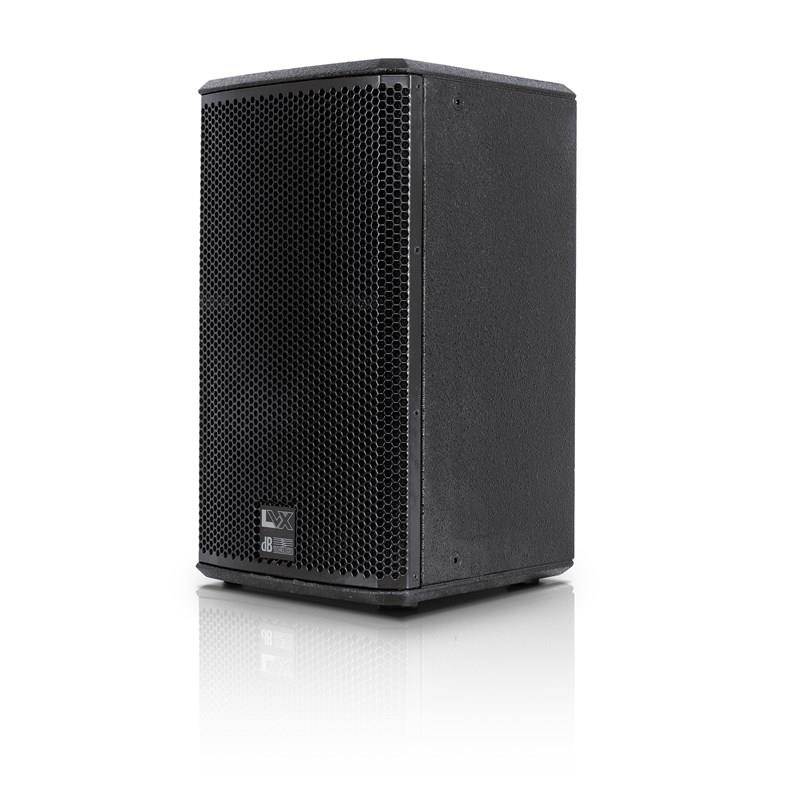

dB Technologies LVX-10 10-inch 800W Aktif Kabin Hoparlör (LVX-10)

dB Technologies LVX-10 - 10-inch 800W Peak Aktif Kabin

Technical Data

Speaker Type 2-Way Active Speaker

Acoustical data

Frequency Response [-10dB]60 - 20.000 Hz

Frequency Response [-6dB]70 - 19.000 Hz

Max SPL125 dB

HF1"

Directivity90 x 70°

HornRotatable CD Horn

LF10"

Amplifier

Amp TechnologyDigipro® G2

Amp ClassClass-D

Peak Power800 W

PRG Power400 W

Processor

ControllerDSP 24bit/48kHz

System PresetsFlat, Processed

LimiterDual Active Peak, RMS, Thermal

Crossover Frequency LF-HF2050 Hz

Slope LF-HF24 dB/Octave

Mechanics

HousingMDF

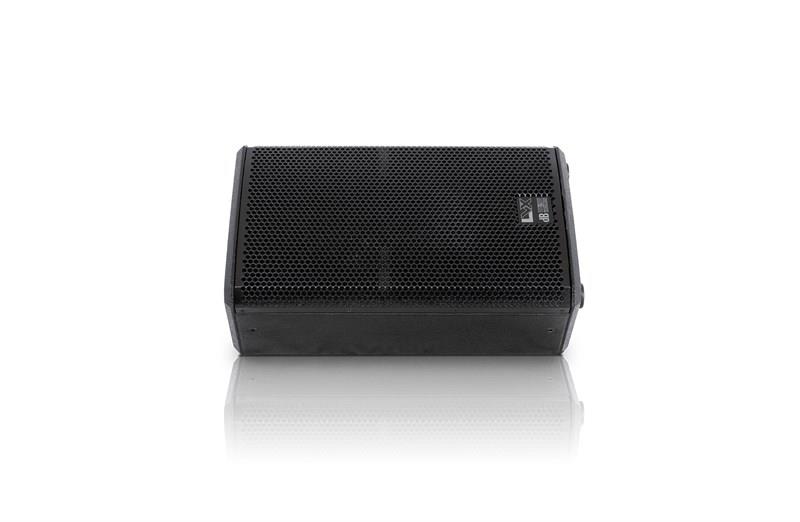

Angles UpMonitor use 40°

Handles1x top side

Rigging points12 x M8

Pole MountD36 mm

Width300 mm (11.8 in)

Height480 mm (18.9 in)

Depth300 mm (11.8 in)

Weight13.5 kg (29.76 lbs)
