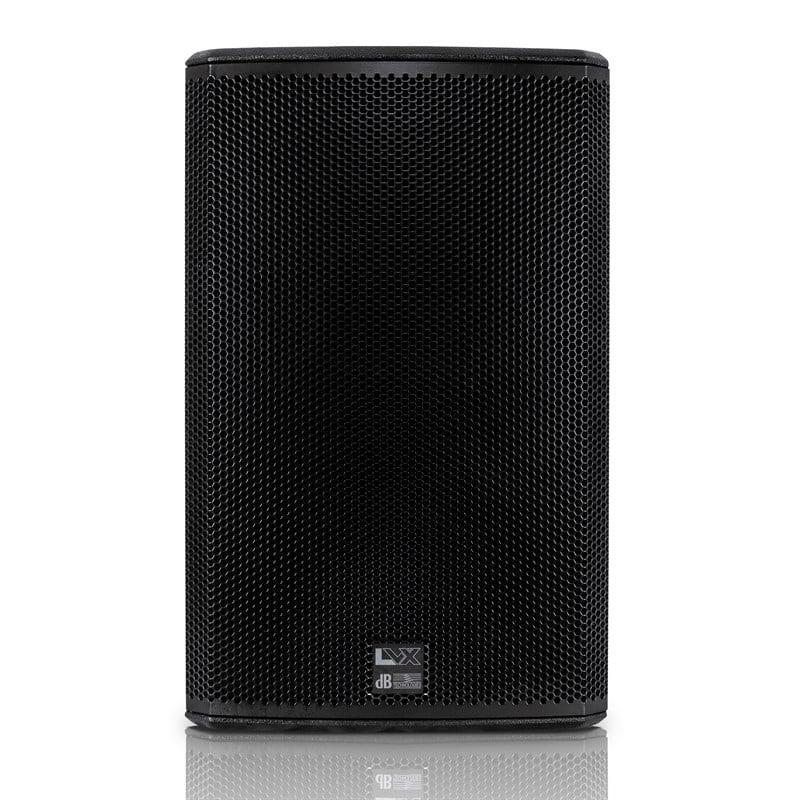

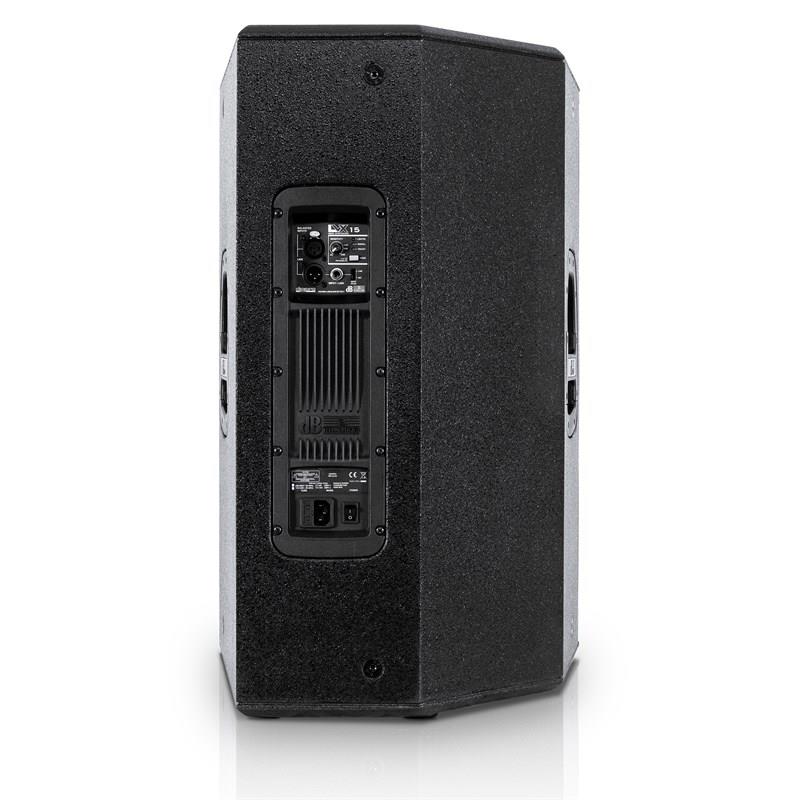

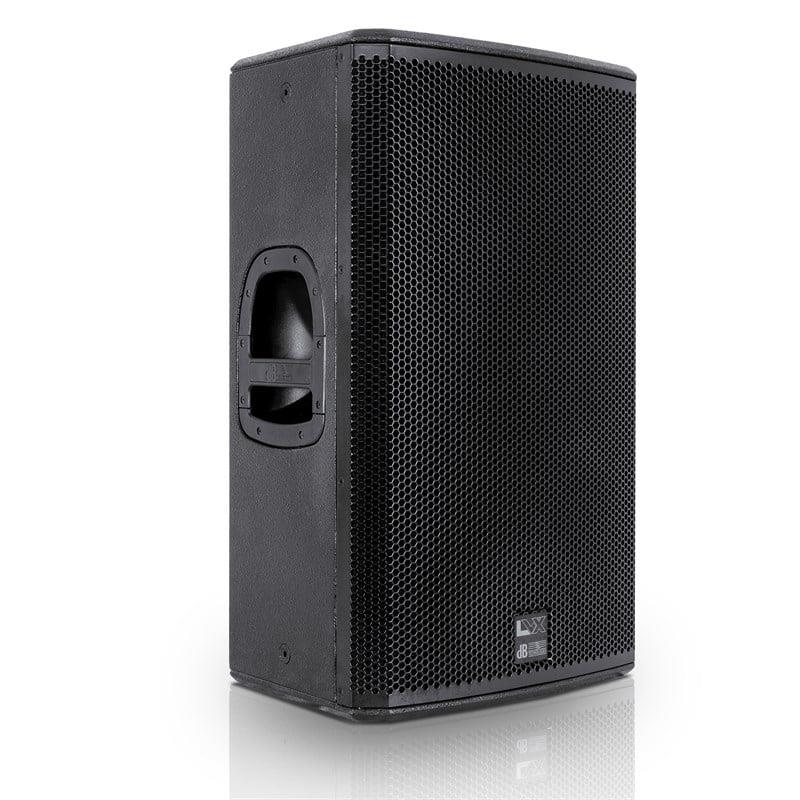

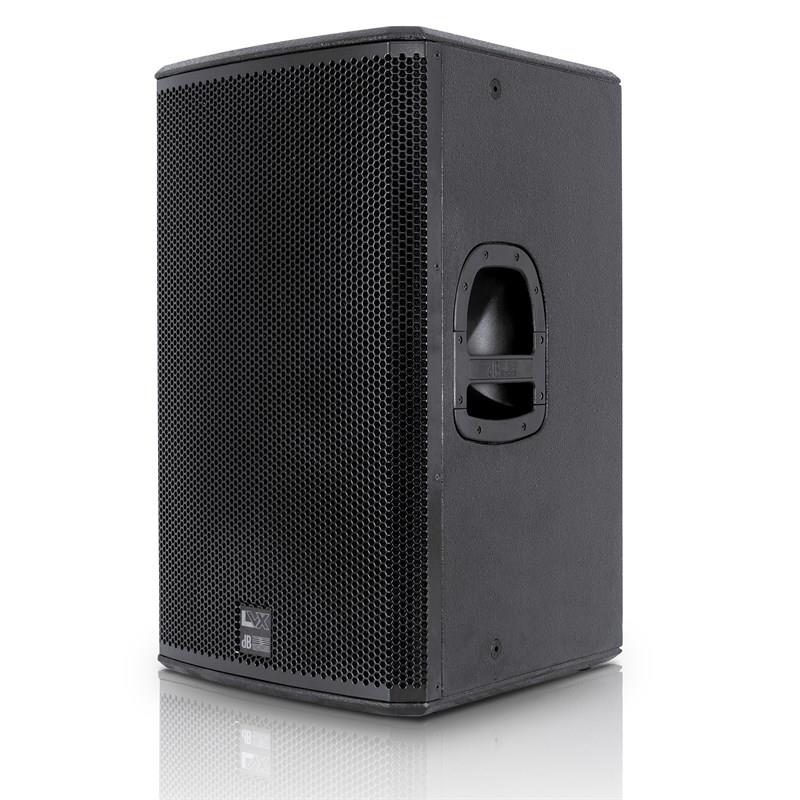

dB Technologies LVX-15 - 15-inch 1600 Watt Peak Aktif Kabin Hoparlör
Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]49 - 20.000 Hz
Frequency Response [-6dB]54 - 19.000 Hz
Max SPL128 dB
HF1"
Directivity90 x 40°
HornRotatable CD Horn
LF15"
Amplifier
Amp TechnologyDigipro® G2
Amp ClassClass-D
Peak Power1600 W
PRG Power800 W
Processor
ControllerDSP 24bit/48kHz
System PresetsFlat, Processed
LimiterDual Active Peak, RMS, Thermal
Crossover Frequency LF-HF1800 Hz
Slope LF-HF24 dB/Octave
Mechanics
HousingMultiplex

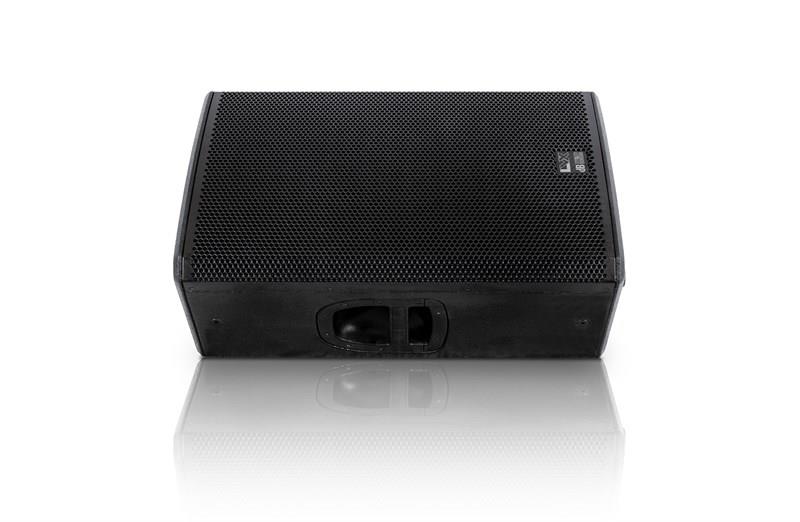

Angles UpMonitor use 45°
Handles3 (1x top side, 1x side)
Rigging points12 x M10
Pole mountD36 mm
Width430 mm (16.93 in)
Height680 mm (26.77 in)
Depth430 mm (16.93 in)
Weight20.7 kg (45.64 lbs)
