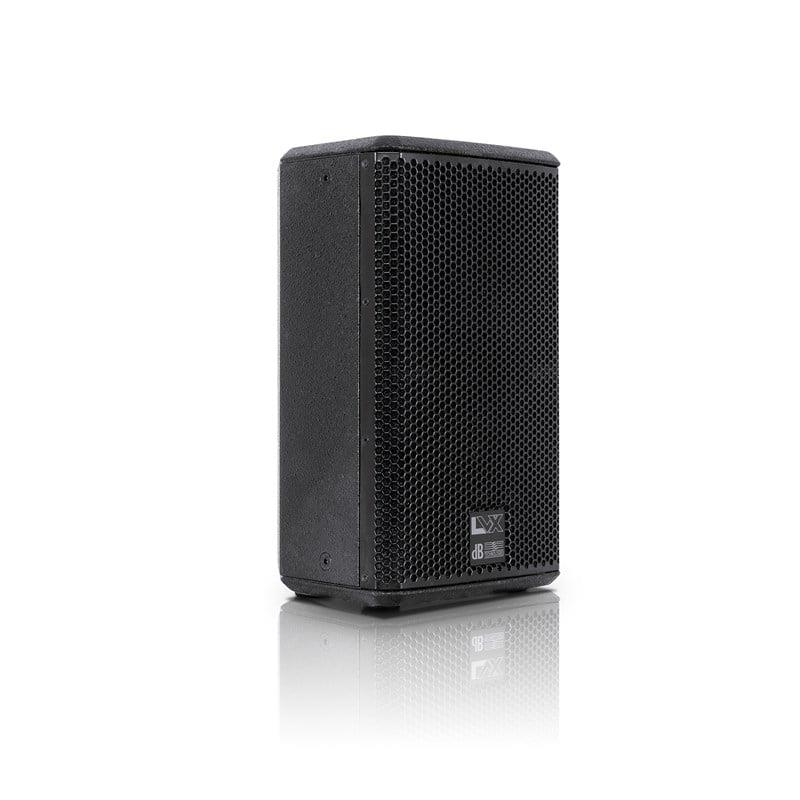

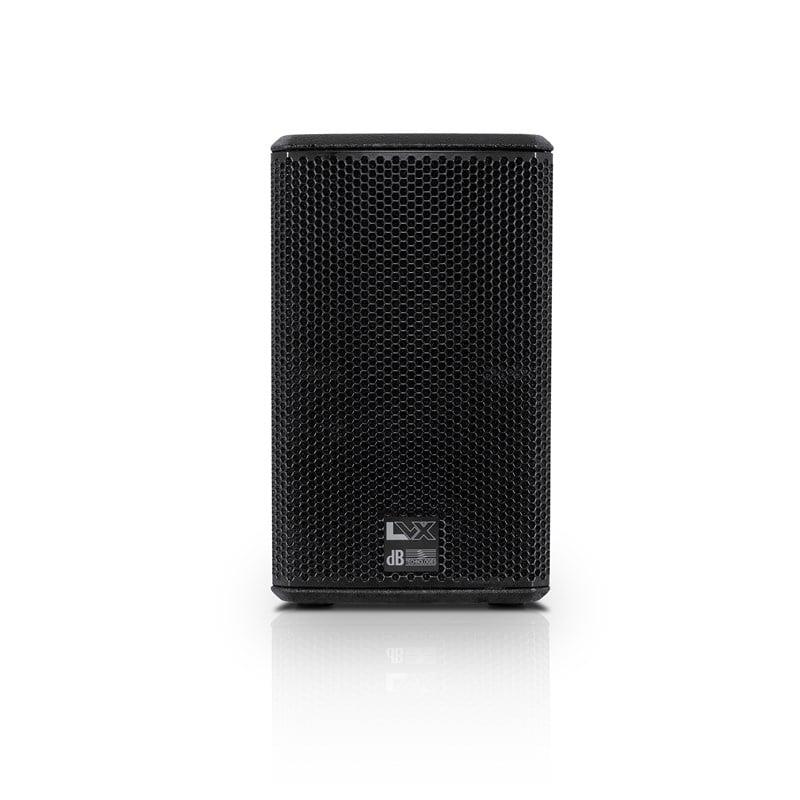

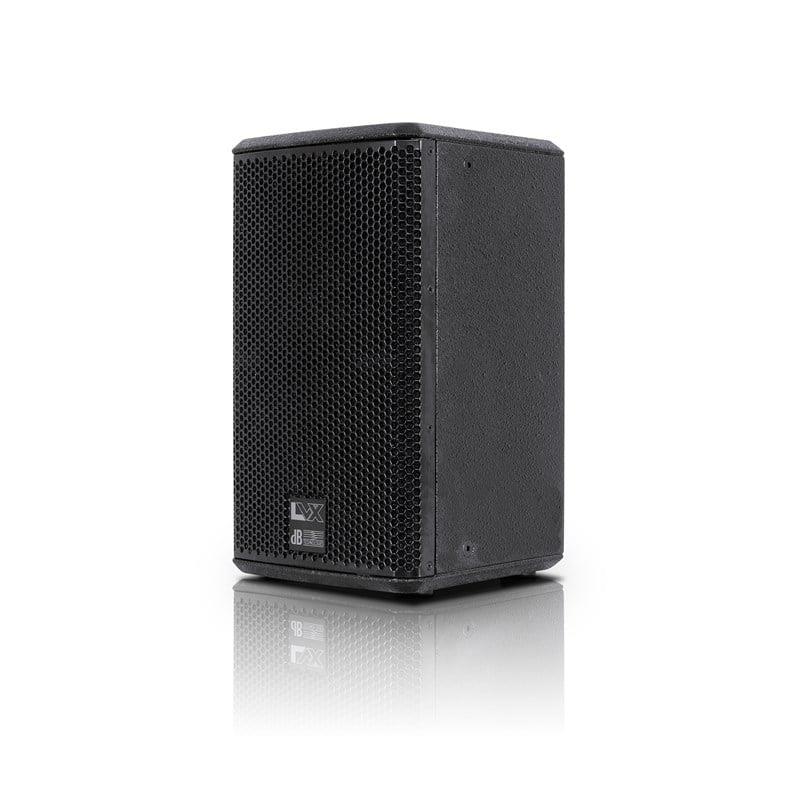

dB Technologies LVX-8 8-inch 800W Peak Aktif Kabin Hoparlör (LVX-8)

dB Technologies LVX-8 - 8-inch 800W Peak Aktif Kabin Hoparlör

Technical Data

Speaker Type 2-Way Active Speaker

Acoustical data

Frequency Response [-10dB]65 - 20.000 Hz

Frequency Response [-6dB]80 - 19.000 Hz

Max SPL121 dB

HF1"

Directivity90 x 70°

HornRotatable CD Horn

LF8"

Amplifier

Amp TechnologyDigipro® G2

Amp ClassClass-D

Peak Power800W

PRG Power400 W

Processor

ControllerDSP 24bit/48kHz

System PresetsFlat, Processed

LimiterDual Active Peak, RMS, Thermal

Crossover Frequency LF-HF2050 Hz

Slope LF-HF24 dB/Octave

Mechanics

HousingMDF

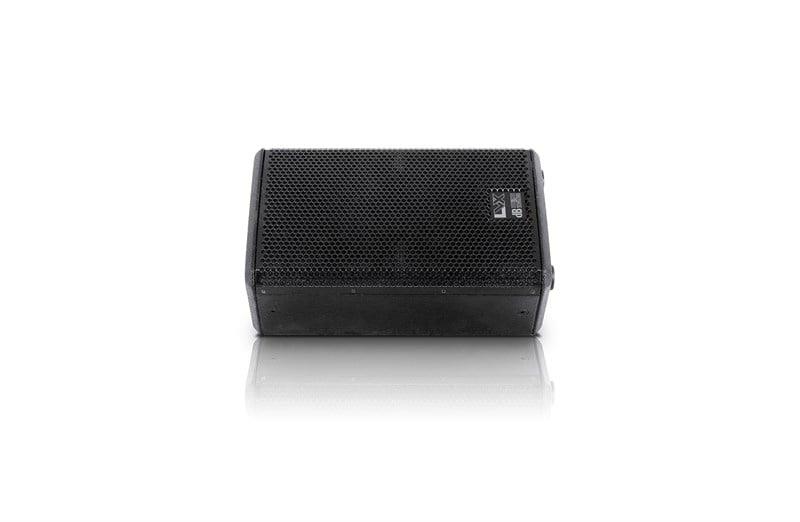

Angles UpMonitor use 40°

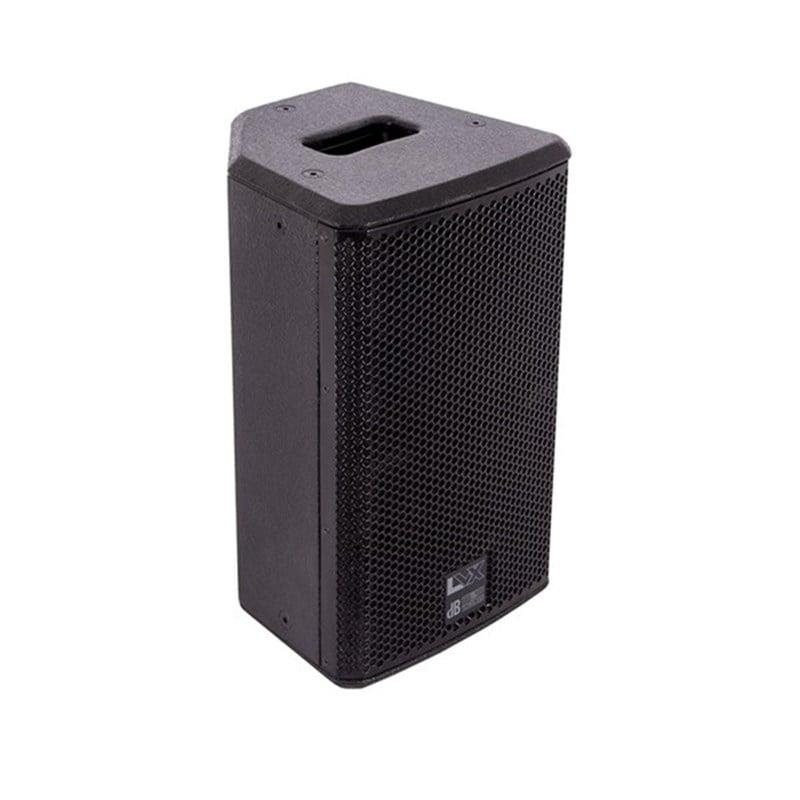

Handles1x top side, recessed

Rigging points10 x M8

Pole MountD36 mm

Width260 mm (10.24 in)

Height420 mm (16.54 in)

Depth260 mm (10.24 in)

Weight10.1 kg (22.27 lbs)
