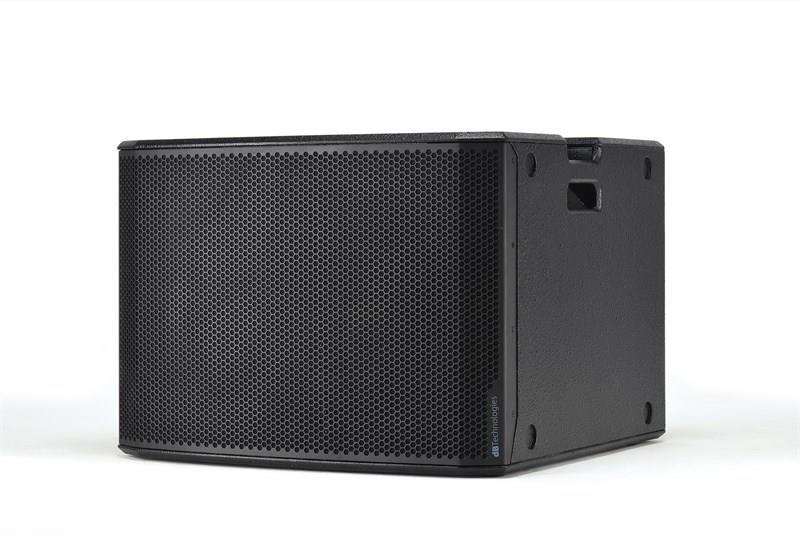

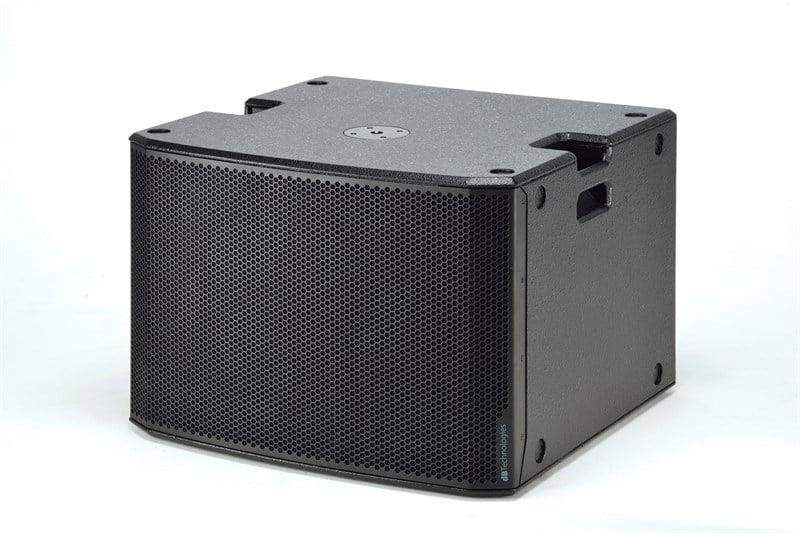

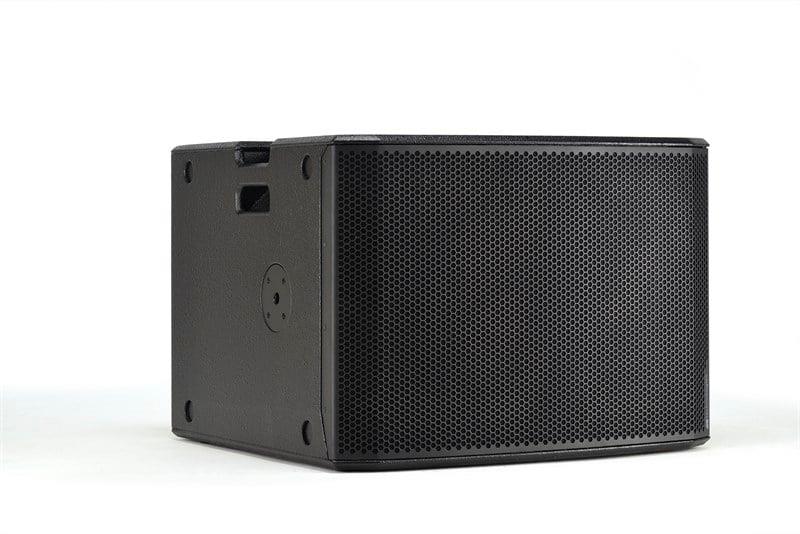

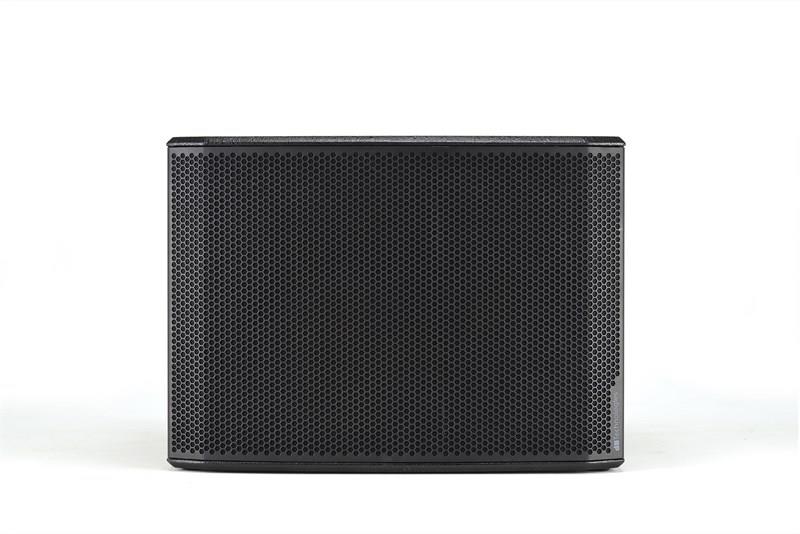

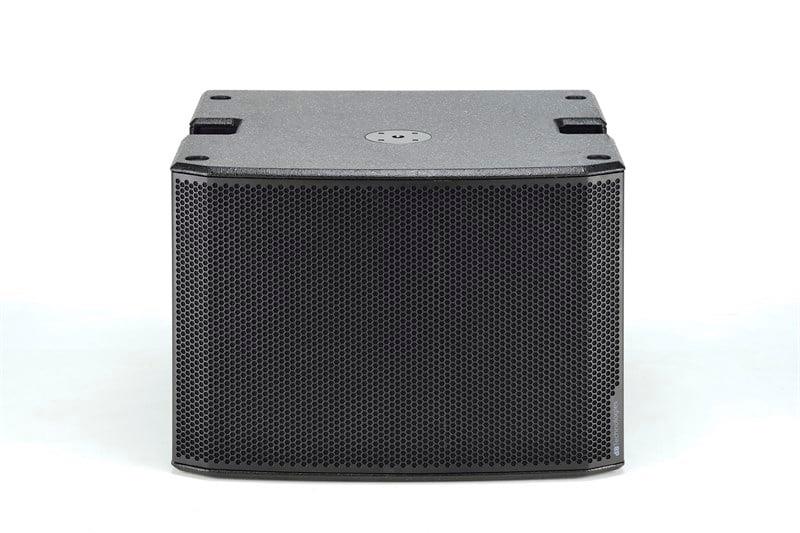

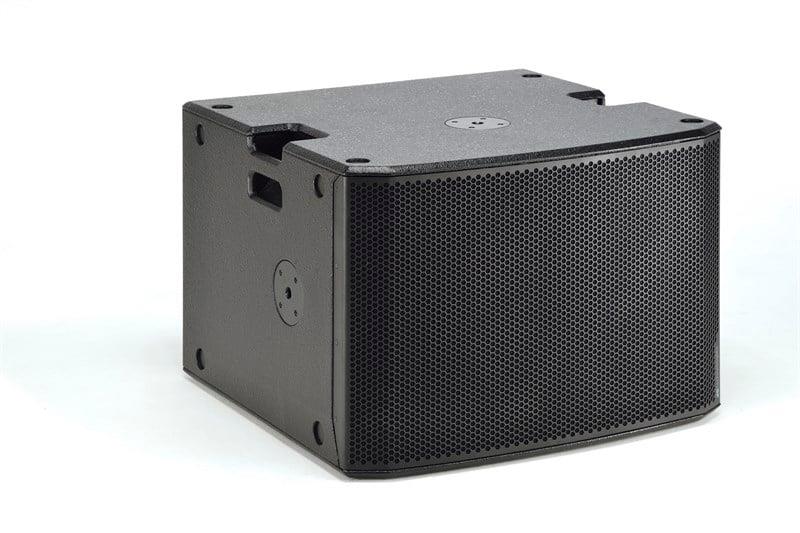

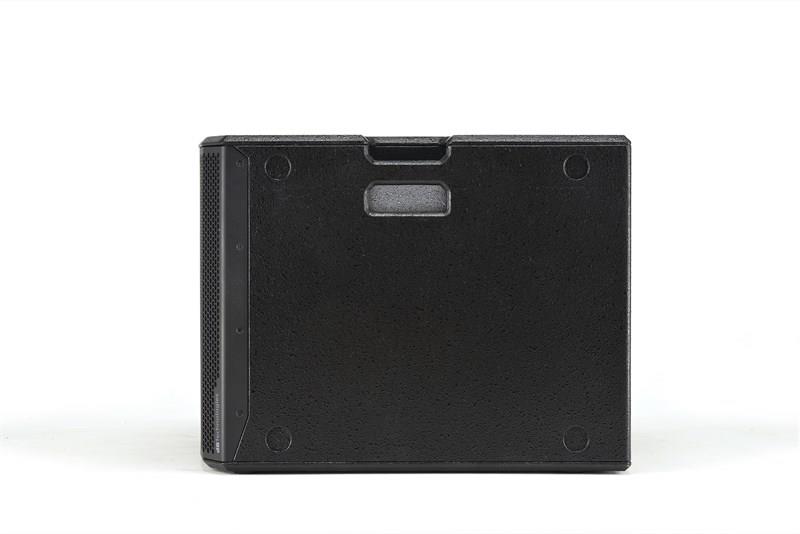

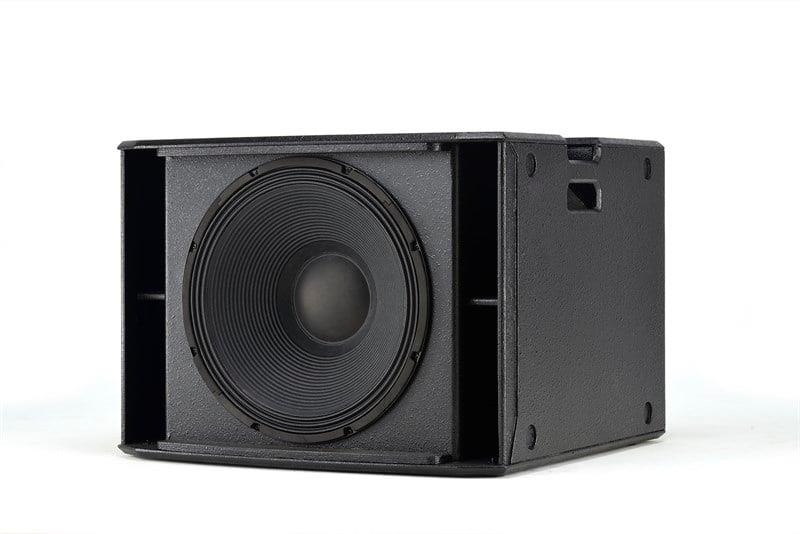

dB Technologies SUB 918 18 inch 1800W Aktif Subwoofer (SUB-918)

dB Technologies SUB 918 18 inch 1800W Aktif Subwoofer

Technical Data

Speaker TypeActive Subwoofer

Acoustical data

Frequency Response [-10dB]42 to cut frequency (Xover dependent)

Max SPL (1 m)134 dB

LF18"

LF Voice Coil4"

Amplifier

Amp TechnologyDigipro G3

Amp ClassClass D

Peak Power1800 W

Processor

Controller28/56 bit DSP

AD/DA Converter 24 bit/48 Hz

LimiterPeak, Thermal, RMS

Crossover Frequency Variable (70Hz - 80Hz - 90 Hz - 100Hz - 110 Hz

Controls1x Subwoofer Atteniation Control

1x Delay Rotary

1xXover Rotary

1x Polarity Switch

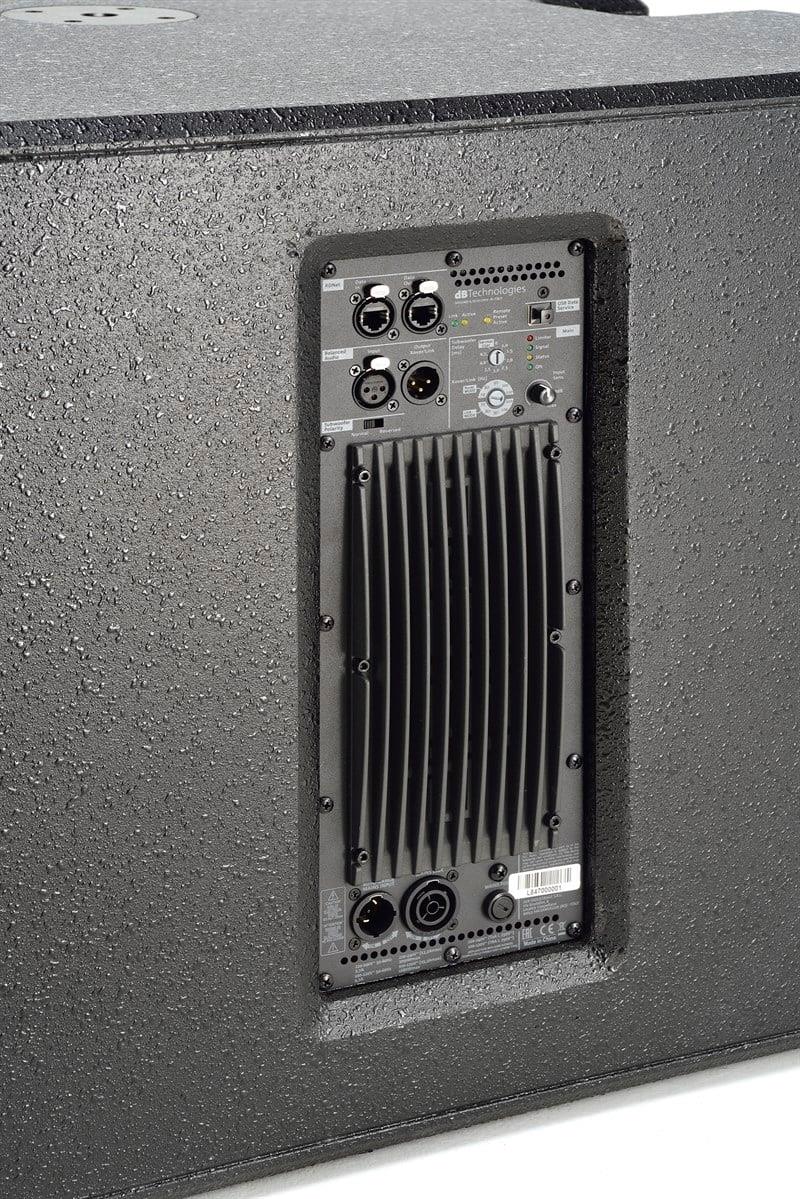

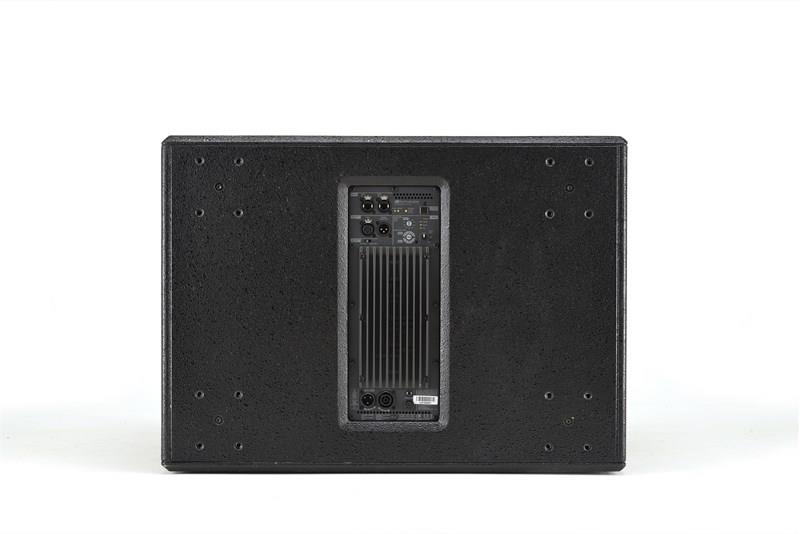

Input

Signal Input1x XLR female

1x USB (data service)

Signal Output2x XLR male

Mechanics

HousingPlywood

Handles 2 (1x side)

Pole Mount2x M20 (1 on top + 1 on side)

Width720 mm (28.3 in)

Height530 mm (20.8 in)

Depth690 mm (27.1 in)
