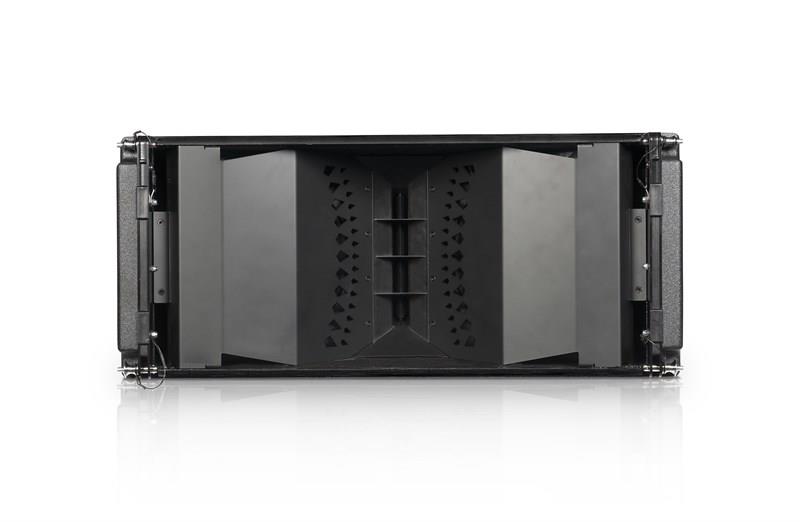

dB Technologies VIO L210 - 1800W Peak Aktif Line Array Modül
Technical Data
Speaker Type2-way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB]67-20,000 Hz
Frequency Response [+/- 3dB]78-18,100 Hz
Max SPL135 dB
HF1x1.4"
Voice Coil HF3"
Type HFNeodymium, Titanium Diaphragm

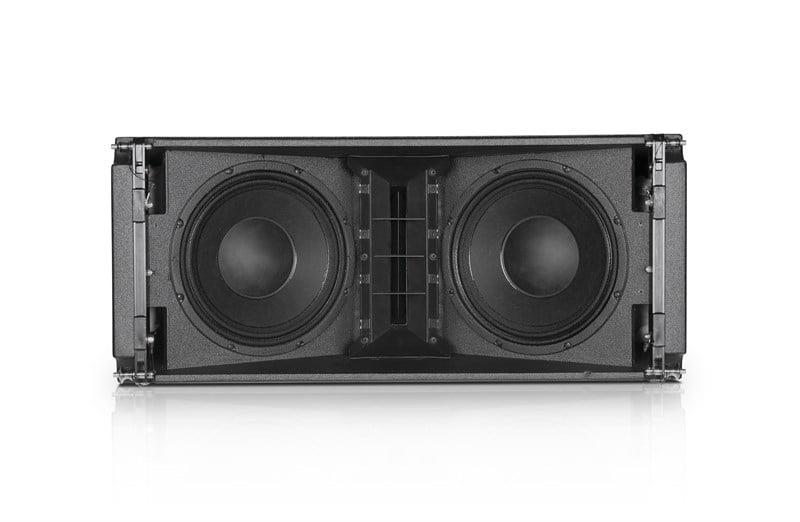

LF2x10"
Voice Coil LF2.5"
Type LFNeodymium Aluminium Phase Plug
Horizontal Directivity100°

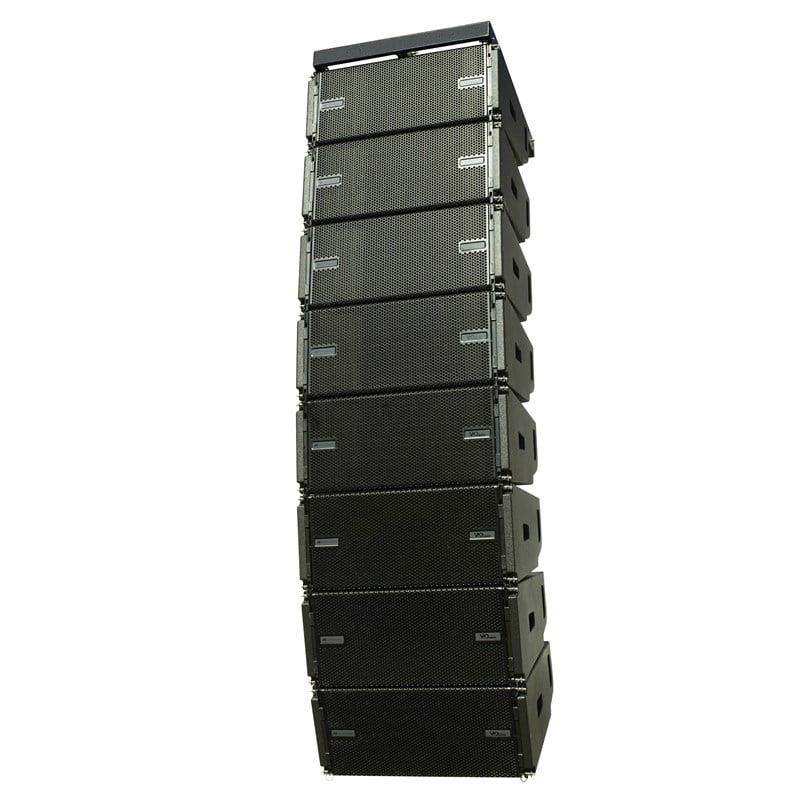

Vertical Directivitydepends on array size and configuration
Amplifier
Amp TechnologyDigipro G3
Amp ClassClass-D
Power RMS900 W
Peak Power1800 W
CoolingConvection
Power Supply 900 W SMPS with Auto-range PSU
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
LimiterDual Active Multiband Peak, RMS, Thermal
Processing (filters)FIR Linear Phase
Crossover Frequency LF-HF950 Hz
Slope LF-HF24 dB/Octave

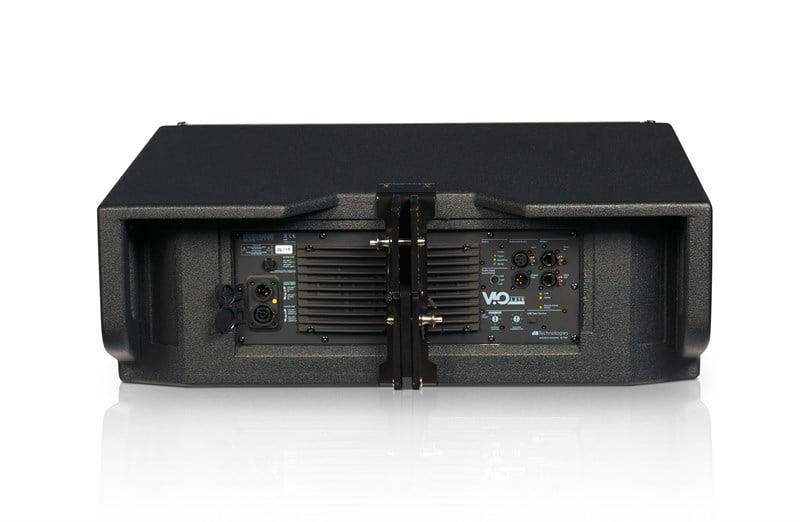

Input
Signal Input1xXLR fem, Bal.
Signal Output1xXLR male, Bal.
Network RDNet remote control RJ45 connector IN/OUT
Power Socket1xPowerCon TRUE1 IN
1xPowerCon TRUE1 Out
Controls 1xSpeakers Coupling (7 presets)
1x HF Compensation (8 presets)
1XInput Attenuation Rotary Switch
Mechanics
HousingMultiplex Plywood
Polyurea painted

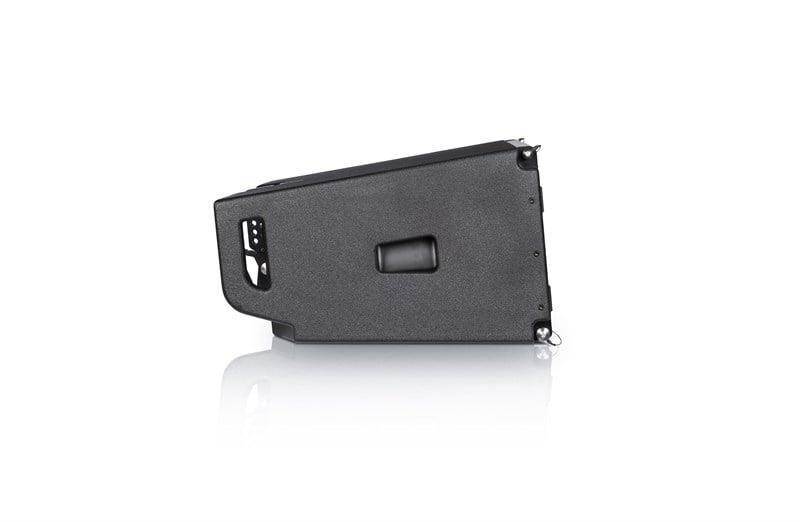

Housing DesignTrapezoidal 10°
Handles2x side
Rain Cover Included

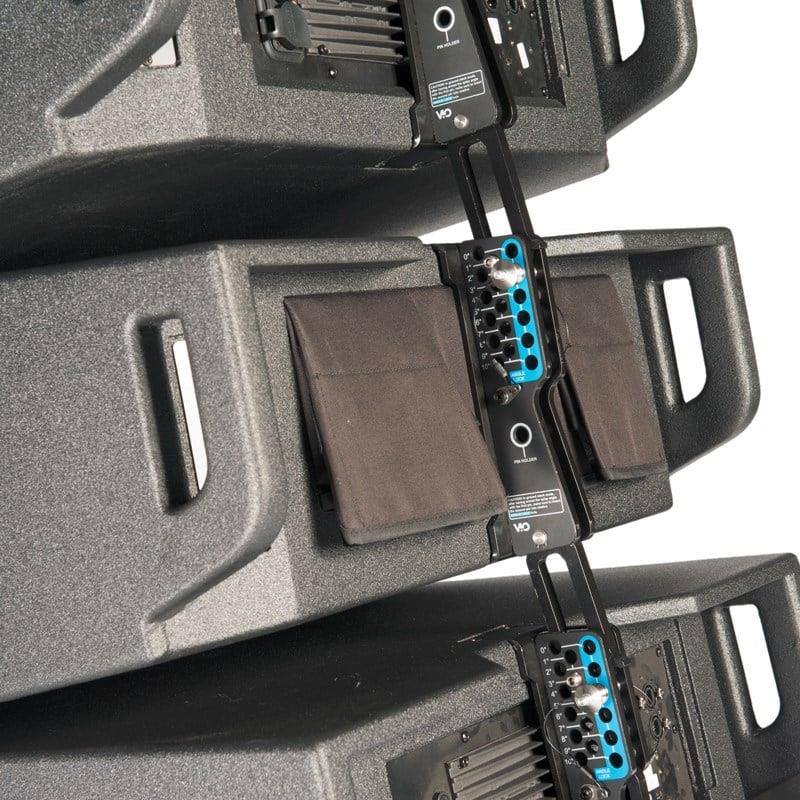

Rigging PointsIntegrated rigging hardware
Width720 mm (28.35 in)
Height320 mm (12.6 in)
Depth520 mm (20.47 in)
Weight28.6 Kg (63.00 lbs)
