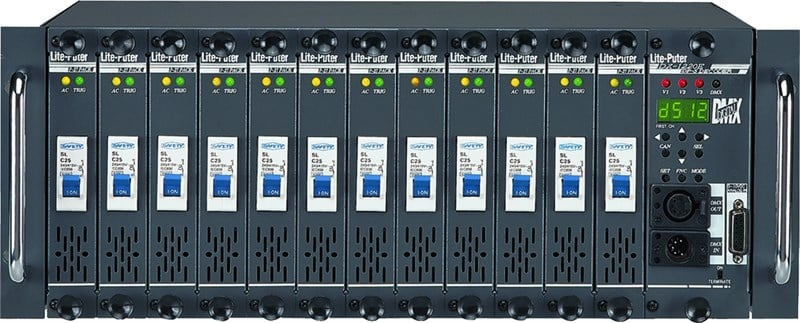

Lite Puter DX-1220 12x20 Amper Moduler Dimmer Pack (DX-1220)

Lite Puter DX-1220 Moduler Dimmer Pack

Dmx Xlr 5 Pin

-12x20 amper modüler dimmer pack

-Ac 240V, 63 Hz

-21 kg

Features:

-12 individual extractable modules with 12 channels control.

-DMX-512 and analog input.

-A MCB (NFB) for each channel.

-Output of each channel can be limited to protect the lamps.

-Emergent scene setting function to output scene data when losing DMX control signal.

-Thermo-controlled fan will be activated automatically when the temperature is over 37℃; cease the output when over 63℃ and restart out when below 60℃.

-Self-testing function to test without a console.

-Options of dimming or switch for each channel.

Specifications:

-Power: AC 90-240 V, 45-63 Hz, 3Ø4W (1Ø3W optional)

-Protocol: DMX-512

-Analog Signal Input: DC 0-10V

-Installation: 19” 4U standard rack
