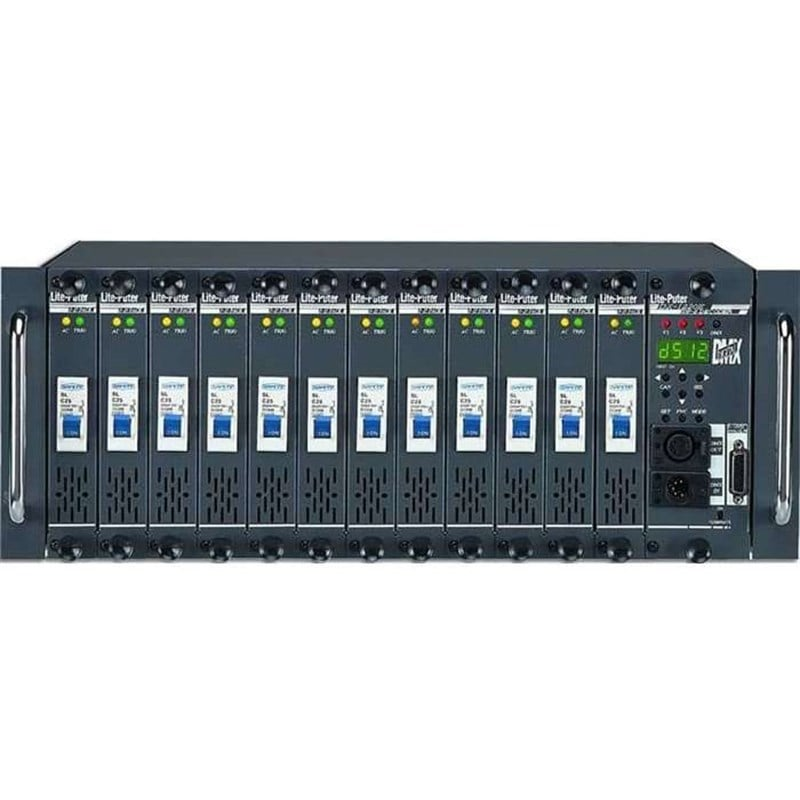

Lite Puter DX-1230 Dimmer 12x30 Amper (DX-1230)

Lite Puter DX-1230 Dimmer 12x30 Amper

Model:                         DX - 1230

Channels:                    12

Output per Channel:    30 A

Dimensions (mm):       482(W)×176(H)×297(D)

Weight (KG):                21.5

Power:                          AC 100-240 V, 45-63 Hz, 3Ø4W (1Ø3W optional)

Protocol:                       DMX-512

Analog Signal Input:     DC 0-10V

Installation:                   19” 4U standard rack

Features:

-12 individual extractable modules with 12 channels control.

-DMX-512 and analog input.

-A MCB (NFB) for each channel.

-Output of each channel can be limited to protect the lamps.

-Emergent scene setting function to output scene data when losing DMX control signal.

-Thermo-controlled fan will be activated automatically when the temperature is over 37℃; cease the output when over 63℃ and restart out when below 60℃.

-Self-testing function to test without a console.

-Options of dimming or switch for each channel.
