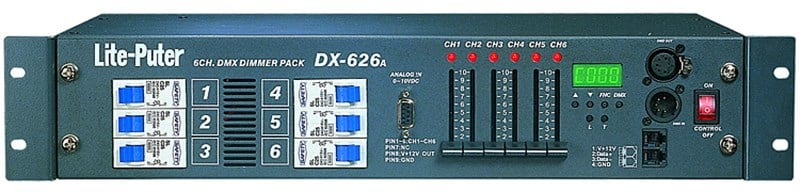

Lite Puter DX 626 6x20 Amper Dimmer Pack (DX-626)

Specifications:

-DMX XLR 5 Pin,

-6x20 amper dimmer pack,

-AC 240V, 63 Hz, 8 kg.

Features:

-6 channels.

-Thermo-controlled fan activated automatically when temperature is over 45℃; output stop when temperature is over 85℃. Output restart when temperature is below 65℃.

-Self-testing function to test without a console.

-Options of dimming or non-dimming for each channel.

-Power: AC 90-240V, 45-63 Hz, 3ψ4W (1ψ3W optional)

-Capacity: 20A (DX-626) /10A (DX-610)per channel (max).

-Protocol:DMX-512

-Analog signal input: DC 0-10V

-Dimension: 482(W) × 88(H) × 312(D) mm

-Installation:19”2U standard rack

-Weight: DX-626: 8 KG
