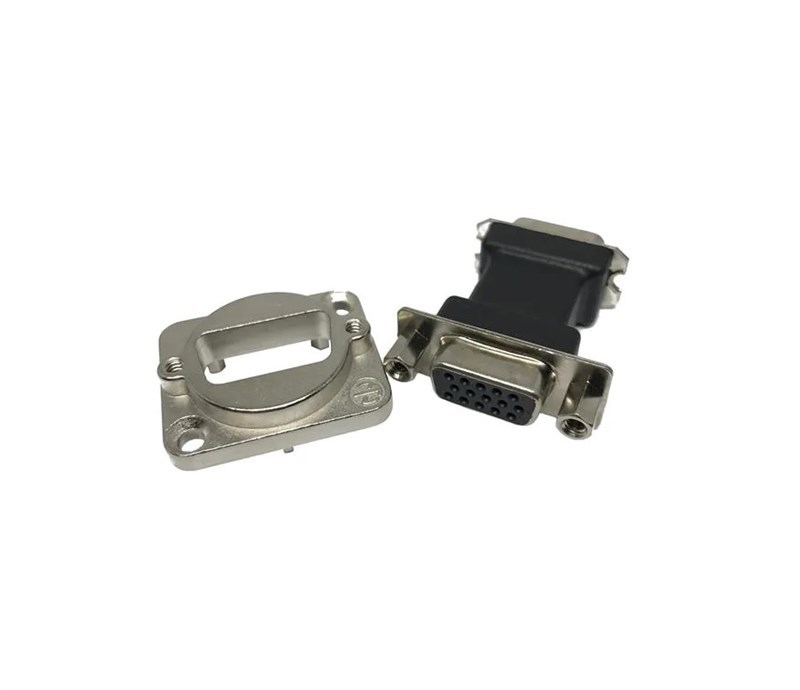

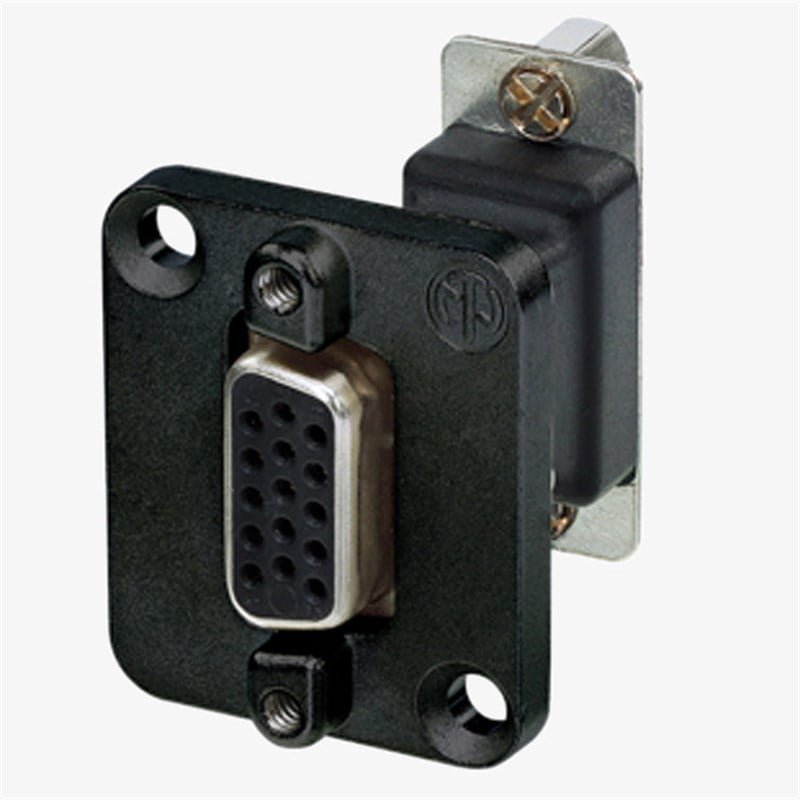

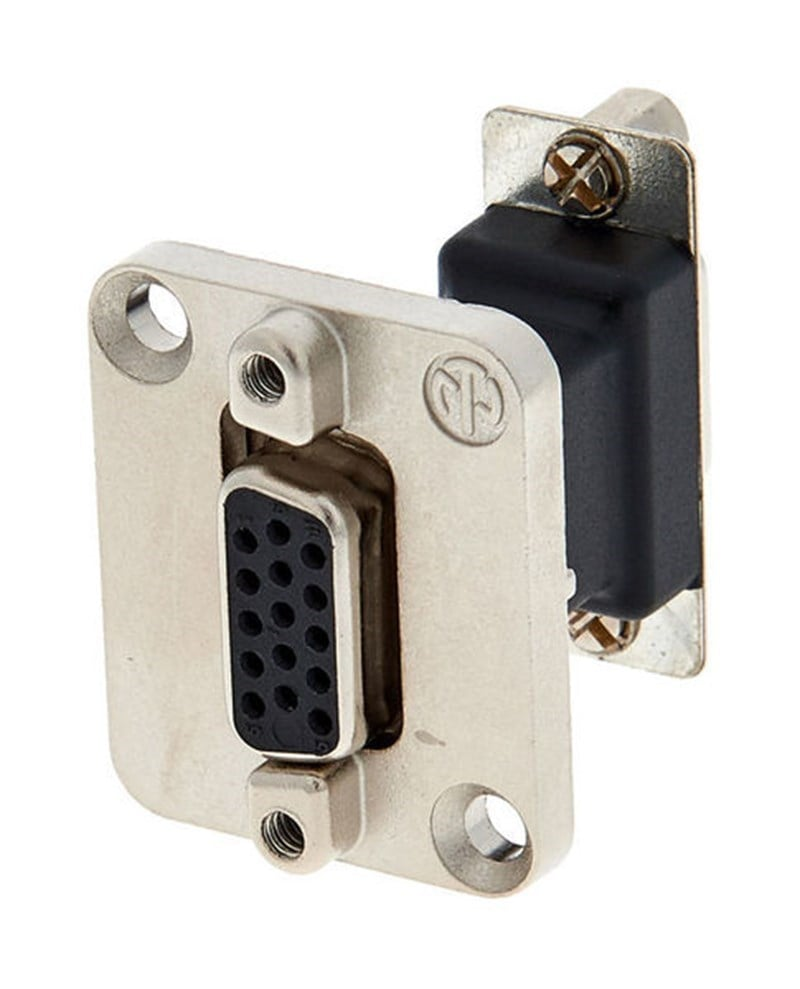

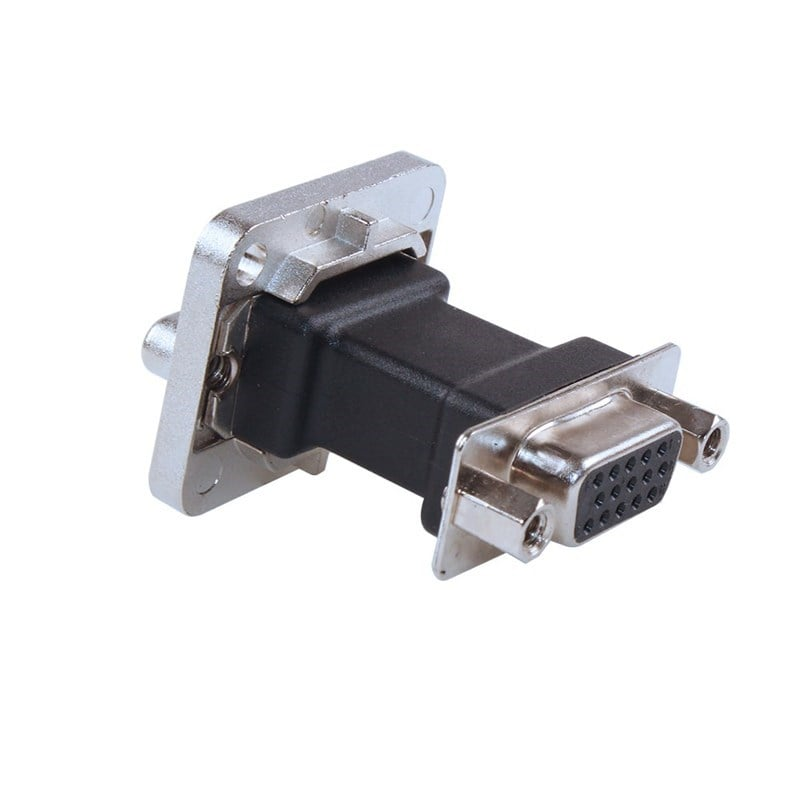

Neutrik NADB15FF Şase Tipi 15 Pin Dişi D-Sub Konnektör (NADB15FF)

Neutrik NADB15FF Şase Tipi 15 Pin Dişi D-Sub Konnektör

Product

Title NADB15FF

Gender female - female

Electrical

Contact resistance 30 mΩ

Insulation resistance > 5 GΩ

Number of electronical contacts 15

Rated current per contact 3 A

Rated voltage 50 V ac

Dielectric strength > 0.5 kVac

Mechanical

Panel thickness 4 mm

Wiresize

Wiring Feedthrough

Mounting direction Front mounting

Chassis shape D

Material

Contact plating Au

Contacts Brass (CuZn39Pb3)

Insert Steel , tin plated, PBT

Shell Zinc diecast (ZnAl4Cu1)

Shell plating Nickel

Environmental

Flammability UL 94 HB

Temperature range -25 °C to +85 °C
